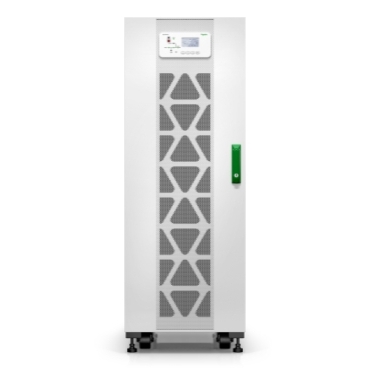

Name: APC Easy UPS 3S 30 kVA 400 V 3:3 UPS with internal batteries 25 minutes runtime
SKU: E3SUPS30KHB2
Availability: InStock

APC Easy UPS 3S 30 kVA 400 V 3:3 UPS with internal batteries 25 minutes runtime

SKU: E3SUPS30KHB2

UShs 54,090,000

In Stock

Other people want this. 13 people have this in their carts right now.

Description

Easy-to-install, easy-to-operate
easy-to-maintain, and easy-to-service 30 kVA
400V 3-phase UPS With advanced product features, competitive specifications, and robust electrical design
the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms Includes dust filter and conformance-coated boards for harsh environments, and 4 internal 7Ah modular battery strings

Lead time	Usually Ships within 6 Weeks

Main

Main Input Voltage	400 V 3 phases
Product or component type	Uninterruptible power supply (UPS)
Other Input Voltage	380 V 415 V
Main Output Voltage	400 V 3 phases
Other Output Voltage	380 V 415 V
Rated power in W	30 kW
Rated power in VA	30 kVA
Provided equipment	Dust filter Installation guide
Range of product	Easy UPS 3S

Batteries & Runtime

Efficiency
Battery type	VRLA
Battery voltage	240 V
Maximum short-circuit current	10 kA
Number of battery filled slots	4
Number of battery free slots	0

Physical

Input

Maximum input current	55 A
Input harmonic distortion	Less than 3 % for full load
Load power factor	0.9 leading to 0.9 lagging
Input Power Factor at Full Load	0.99
Input voltage limits	304...477 V
Network frequency	45...65 Hz

Output

Maximum configurable power in VA	30 kVA
Maximum configurable power in W	30 kW
Output frequency	50 Hz sync to mains 60 Hz sync to mains
Harmonic distortion	Less than 3 %
Output harmonic distortion	< 3% linear load
Output voltage tolerance	+/- 1.5 %
UPS type	Double conversion online
Additional information	UPS weight does not include battery weight.

Conformance

Product certifications	CE EAC RCM

Environmental

Ambient air temperature for operation	32…104 °F (0…40 °C)
Relative humidity	0…95 % non-condensing
Operating altitude	0...3333 ft
Ambient air temperature for storage	5…104 °F (-15…40 °C)
