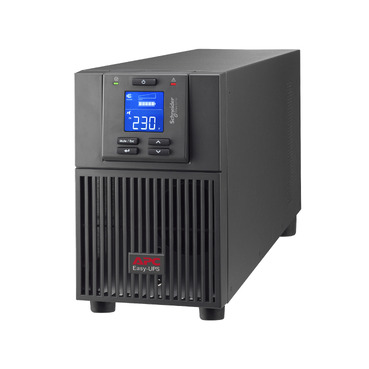

This APC Single phase is designed Easy UPS for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions.
Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Intelligent Card Slot: Customize UPS capabilities with management cards.
LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
Output
Max Configurable Power (Watts): 1.6kWatts / 2.0kVA
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load: 88.0 %
Output Voltage Distortion: 3 %
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages: 220 V, 240 V
Load Crest Factor: 3 : 1
Topology: Double conversion online
Waveform type: Sine wave
Bypass: Internal bypass (automatic and manual)
Input
Input frequency: 40 – 70 Hz Auto sensing
Input voltage range for main operations: 110 – 285 Half load, 160 – 280 Full loadV
Number of Power Cords: 1
Efficiency at Full Load: 88.0 %
Other Input Voltages: 220 V, 240 V
Batteries & Runtime
Battery type: Lead-acid battery
Typical recharge time: 4hour(s)
Nominal Battery Voltage: 48 V
Expected Battery Life (years): 3 – 5
Battery Charge Power (Watts): 70 Watts
Communications & Management
Interface Port(s): DB-9 RS-232, USB
Control panel: Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rating: 600Joules
Environmental
Operating Temperature: 0 – 40 °C
Operating Relative Humidity: 0 – 95 (Non-condensing) %
Operating Elevation: 0 – 3000meters
Storage Temperature: -20 – 50 °C
Storage Relative Humidity: 0 – 95 (Non-condensing) %
Storage Elevation: 0 – 15000meters
Audible noise at 1 meter from surface of unit: 50.0dBA
Online thermal dissipation: 745.0BTU/hr
Protection Class: IP20
Dimensions (WxDxH): 145mm x 400mm x 238mm
Weight: 16.8Kg (37.03 lbs)
