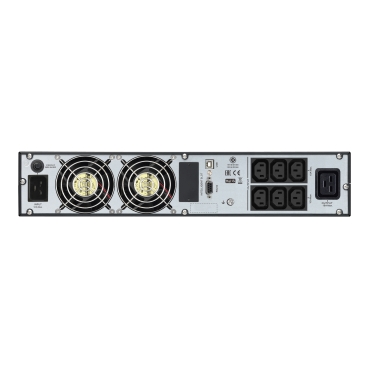

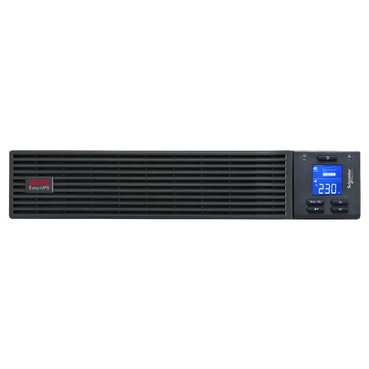

APC Easy UPS SRV RM 3000VA 230V ,with RailKit

SKU: SRV3KRIRK
UShs 4,705,000
In Stock
Other people want this. 2 people have this in their carts right now.
SKU: SRV3KRIRK Categories: ,
APC Easy UPS SRV RM 3000VA 230V ,with RailKit (SRV3KRIRK)
  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

  • Includes: Basic UPS signaling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, User manual

Description

APC Easy UPS SRV RM 3000VA 230V with RailKit (SRV3KRIRK)

Key Features

  • Max. Capacity Used: 100%
  • Output power capacity: 2.4kWatts / 3.0kVA
  • Rack Height: 2U
  • Nominal Output Voltage: 230V
  • Nominal Input Voltage: 230V
  • Input Connections: IEC 60320 C20
  • Cord Length: 1.5meters
    • Automatic internal bypass – Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
    • Automatic restart of loads after UPS shutdown – Automatically starts up the connected equipment upon the return of utility power.
    • Automatic updates and backups – Updates and backups are automatically applied to always provide the most current solution.
    • ECO Mode – Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
    • Intelligent battery management – Maximizes battery performance, life, and reliability through intelligent, precision charging.
    • LCD graphics display – Text and mimic diagrams that display modes of operation, system parameters and alarms.
    • Serial connection – Use your PC to access additional power protection and management features for your UPS via a serial port.
    • USB connection – Use your PC to access additional power protection and management features for your UPS via a USB Port.

Output

Max Configurable Power (Watts)

2.4kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Voltage Distortion

3 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto sensing

Input voltage range for main operations

110 – 285 Half load, 160 – 280 Full loadV

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

5.5hour(s)

Nominal Battery Voltage

72 V

Expected Battery Life (years)

3 – 5

Battery Charge Power (Watts)

350 Watts

Communications & Management

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

172MM, 17.2CM

Maximum Width

437MM, 43.7CM

Maximum Depth

632MM, 63.2CM

Net Weight

52.0KG

Shipping weight

66.8KG

Shipping Height

480MM, 48.0CM

Shipping Width

600MM, 60.0CM

Shipping Depth

800MM, 80.0CM

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3000meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15000meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

910.0BTU/hr

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI

Standard warranty

2 years repair or replace
