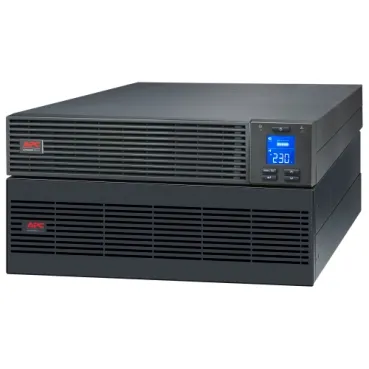

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(P+N+E) outlet.
Versatile Design
Rackmount and tower installation options enables flexible setup.
Extended Runtime
Extended runtime with up to 4 external battery packs caters the needs of long runtime applications.
Simplified Monitoring and Management
PowerChute™ Serial Shutdown software provides graceful unattended shutdown of servers and workstations using serial or USB cables and helps prevent data corruption and costly equipment damage.
Optional Network Management Card (part number AP9544 sold separately) supports network based monitoring of Easy UPS On-Line.
Wide kVA Range of Products
Easy UPS On-Line is capable of supporting wide range of loads from 1 kVA up to 20 kVA.
|
Run time for load
information_stroke
Min-max: 600-6000 W
|
6min 49s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 % |
| Main Input Voltage | 230 V |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Number of rack unit | 5U |
| Provided equipment | 1 USB cable 1 RS-232 configuration cable 2 rack mounting brackets 2 rack mounting support rails 1 external battery pack 1 battery cable |
| Run Time |
action_new_window
|
|---|---|
| Efficiency |
action_new_window
|
| Battery type | Lead-acid battery |
| Battery voltage | 240 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 1170 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| height | 22 cm |
| Width | 43.8 cm |
| Depth | 61.5 cm |
| Net weight | 78 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input voltage limits | 110…300 V 60 % load 176…300 V full load |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40…70 Hz auto sensing |
| Maximum configurable power in VA | 6000 VA |
|---|---|
| Maximum configurable power in W | 6000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| product certifications | CE UKCA EAC TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 55 dBA |
| heat dissipation | 1172 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 4 |
| Package 1 Height | 49 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 87 cm |
| Package 1 Weight | 88 kg |
| Warranty | 2 years repair or replace |
|---|
