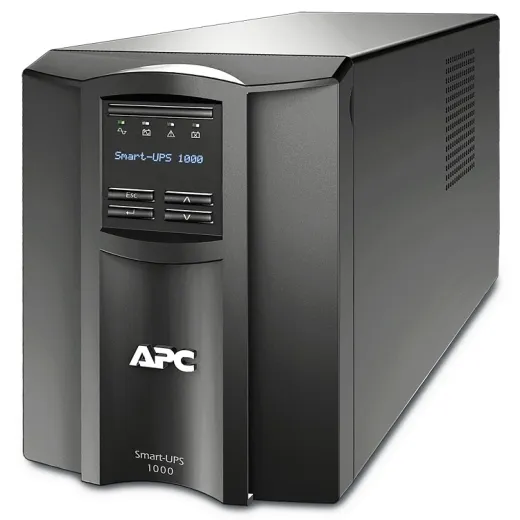

APC SMT1000IC UPS Smart-UPS is one of the most popular UPS in the world for servers, storage and networks. Trust to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Smart-UPS series have long been considered the benchmark for all network and server UPS’s. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
BACKUP BATTERY LETS YOU KEEP WORKING
Protect your servers, switches, routers, and networking devices with the APC Smart-UPS SMT1000. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. An automatic green mode ensures you are operating at the highest level of efficiency, and intelligent battery management maximizes performance. Use the intuitive LCD interface or PowerChute Business Edition software to configure UPS settings and monitor usage. With a 700-watt power capacity and eight battery and surge protected outlets, and one switchable outlet group this Smart-UPS is ideal for small and medium-sized businesses.
PROTECTS ELECTRONIC EQUIPMENT FROM POWER DISRUPTIONS
Keep your electronic equipment protected through blackouts, brownouts, surges, and other power disturbances with APC Smart-UPS. It provides generous runtime while on battery so you can continue working during medium-length power outages.
Automatic voltage regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment has reliable power and preserving the life of the battery. The pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
POWER-SAVING GREEN MODE OPERATES AT HIGH EFFICIENCY
Operate efficiently with the Smart-UPS green mode, conserving energy when power quality is within optimal levels and power conditioning is not necessary. The UPS will enter and exit green mode automatically, ensuring you are always operating at the highest efficiency while saving power, reducing utility costs, and generating less heat. To help you monitor your energy usage, this UPS has an energy meter that provides actual kilowatt-hours of usage.
BATTERY MANAGEMENT FEATURES ENSURE OPTIMAL PERFORMANCE
For easy battery maintenance, this UPS provides you with a predictive date for when battery replacement is recommended. The periodic self-test and disconnected battery notification both ensure you detect any faulty batteries. To prolong battery life, the Smart-UPS regulates the charge voltage according to battery temperature.
INTUITIVE LCD INTERFACE FOR EASY CONFIGURATION
Check utility status and adjust settings on the easy-to-use LCD interface. A bright display provides clear, accurate information in multiple language options, and intuitive navigation keys make it simple to configure settings. This UPS has a SmartSlot that allows use of a network management card for customization.
POWERCHUTE SOFTWARE PROVIDES SAFE SYSTEM SHUTDOWN
Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. It’s fast and easy to install, and you can tailor settings to meet your individual needs. Find cost savings by using PowerChute to monitor your equipment’s energy consumption.
| Presentation |
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
|
|
|---|---|---|
| Lead time |
| provided equipment |
Cat 5 Ethernet cable
Installation guide USB cable |
|
|---|---|---|
| product web sub-family |
Cloud-enabled monitoring
|
|
| performance multiplier |
1
|
|
| Number of tare power |
30 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| size UPS version |
Internetworking
Server Telecom |
|
| UPS size |
S
|
|
| value multiplier |
1
|
| colour |
Black
|
|
|---|---|---|
| depth |
43.9 cm
|
|
| height |
21.9 cm
|
|
| mounting location |
Front
|
|
| mounting preference |
No preference
|
|
| net weight |
19.4 kg
|
|
| mounting mode |
Not rack-mountable
|
|
| two post mountable |
0
|
|
| USB compatible |
No
|
|
| width |
17.1 cm
|
| network frequency |
50/60 Hz +/- 3 Hz auto-sensing
|
|
|---|---|---|
| plug standard |
IEC 320 C14
|
|
| input voltage limits |
151…302 V adjustable
160…286 V |
|
| inputvolt_other |
220 V
240 V |
|
| input voltage |
230 V
|
| rated power in W |
700 W
|
|
|---|---|---|
| Maximum configurable power in W |
700 W
|
|
| harmonic distortion |
Less than 5 %
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| outputvolt_other |
220 V
240 V |
|
| UPS type |
Line interactive
|
|
| Wave type |
Sine wave
|
|
| nb of power socket outlets |
8 IEC 320 C13
2 IEC Jumpers |
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0104
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
2 %
|
|
| curve proportional loss |
0
|
|
| curve square loss |
0.0024
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF = 1.0) output.
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| graph display |
1
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
1000 VA
|
|
| rated power in VA |
1000 VA
|
|
| Transfer time |
6 ms typical : 10 ms maximum
|
| product certifications |
CE
EAC RCM VDE |
|
|---|---|---|
| standards |
EN/IEC 62040-1
EN/IEC 62040-2 |
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 %
|
|
| operating altitude |
0…10000 ft
|
|
| ambient air temperature for storage |
-15…45 °C
|
|
| Storage Relative Humidity |
0…95 %
|
|
| storage altitude |
0.00…15240.00 m
|
|
| acoustic level |
41 dBA
|
|
| heat dissipation |
100 Btu/h
|
|
| show note OP temperature |
No
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
3 h
|
|
| number of battery replacement quantity |
1
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
|
| battery curve |
Z
|
|
| battery charger power |
88 W rated
|
|
| Battery power in VAH |
264 VAh runtime
|
|
| battery life |
3…5 year(s)
|
|
| extended runtime |
0
|
| free slots |
1
|
|
|---|---|---|
| control panel |
Multifunction LCD status and control console
|
|
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
| Emergency power off |
Optional
|
| Surge energy rate |
459 J
|
|
|---|---|---|
| noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
| Package 1 Weight |
22.77 kg
|
|
|---|---|---|
| Package 1 Height |
37.6 cm
|
|
| Package 1 width |
32.8 cm
|
|
| Package 1 Length |
59.5 cm
|
|
| Number of Units in Package 3 |
12
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
