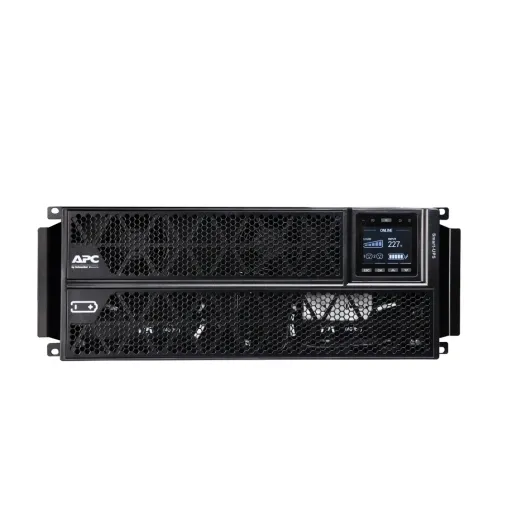

APC SRTG10KXLI RT 10kVA UPS. High density, double-conversion on-line power protection with scalable runtime.
Protection
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serviceability
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Manageability
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
LED status indicators
Quickly understand unit and power status with visual indicators.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
Serial connectivity
Provides management of the UPS via a serial port.
Marketing features
Low operating and maintenance costs with proven reliability and intelligent battery management .
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data protected and available .
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Adaptability
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Availability
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
| provided equipment |
Smart UPS signalling RS-232 cable
User manual |
|
|---|---|---|
| Number of tare power |
174.6 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| UPS size |
S
|
| depth |
62 cm
|
|
|---|---|---|
| height |
21.7 cm
|
|
| mounting preference |
No preference
|
|
| net weight |
81.12 kg
|
|
| mounting mode |
Rack-mounted with kit
|
|
| two post mountable |
0
|
|
| USB compatible |
No
|
|
| width |
44 cm
|
| network frequency |
40…70 Hz auto-sensing
|
|
|---|---|---|
| number of input connectors |
1 hard wire 3-wire (1P + N + E)
|
|
| input voltage limits |
160…285 V
|
|
| inputvolt_other |
220 V
240 V |
|
| maximum input current |
30 A
|
|
| max short time withstand current |
40 kA
|
|
| input voltage |
230 V
|
| rated power in W |
10000 W
|
|
|---|---|---|
| Maximum configurable power in W |
10000 W
|
|
| harmonic distortion |
Less than 2 %
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| outputvolt_other |
220 V
240 V |
|
| crest factor |
3 : 1
|
|
| UPS type |
Double conversion online
|
|
| Wave type |
Sine wave
|
|
| output connector type |
Hard wire 3-wire (H N + E) 1
|
|
| nb of power socket outlets |
2 IEC 60320 C13
1 IEC 60320 C19 |
|
| bypass type |
Internal bypass (automatic and manual)
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0130
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
2 %
|
|
| curve proportional loss |
0.0242
|
|
| curve square loss |
0.0229
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| full load runtime |
00:03:30
|
|
| graph display |
1
|
|
| half load runtime |
00:11:00
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
10000 VA
|
|
| rated power in VA |
10000 VA
|
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 % non-condensing
|
|
| operating altitude |
0…6600 ft
|
|
| ambient air temperature for storage |
-15…45 °C
|
|
| Storage Relative Humidity |
0…95 % Non-condensing
|
|
| storage altitude |
0.00…15240.00 m
|
|
| acoustic level |
55 dB
|
|
| heat dissipation |
2217.98 Btu/h
|
|
| show note OP temperature |
No
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
4 h
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
|
| battery voltage |
+/- 96 V
|
|
| battery curve |
D
|
|
| battery charger power |
431 W rated
|
|
| Battery power in VAH |
1772 VAh capacity
1772 VAh runtime |
|
| battery life |
3…5 year(s)
|
|
| battery option |
SRTG192XLBP4 1 3564 VAh
SRTG192XLBP4 2 5415 VAh SRTG192XLBP4 3 7378 VAh SRTG192XLBP4 4 9216 VAh |
|
| extended runtime |
1
|
| preinstalled device |
Network management card
|
|
|---|---|---|
| control panel |
LED Status display with on line : on battery
Multifunction LCD status and control console |
|
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
| Emergency power off |
Yes
|
| Surge energy rate |
600 J
|
|---|
| Package 1 Weight |
83.14 kg
|
|
|---|---|---|
| Package 1 Height |
41.4 cm
|
|
| Package 1 width |
59 cm
|
