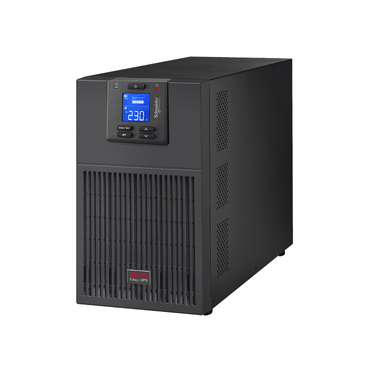

High-quality, Double-conversion online UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: Basic UPS signaling RS-232 cable
CD with software, USB cable, User manual
Output
· Output power capacity: 2.4 KWatts / 3.0 kVA
· Max Configurable Power (Watts): 2.4 KWatts / 3.0 kVA
· Nominal Output Voltage: 230V
· Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
· Other Output Voltages: 220, 240
· Load Crest Factor: 3 : 1
· Topology: Double Conversion Online
· Waveform type: Sine wave
· Output Connections: (6) IEC 320 C13 (Battery Backup) / (1) IEC 320 C19 (Battery Backup)
Input
· Nominal Input Voltage: 230V
· Input frequency: 40 – 70 Hz
· Input Connections: IEC-320 C14
· Input voltage range for main operations: 160 – 280V
· Number of Power Cords: 1
· Other Input Voltages: 220, 240
Batteries
· Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leak-proof
· Typical recharge time: 4hour (s)
Communications & Management
· Control panel: Multi-function LCD status and control console
· Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload
| Main Input Voltage | 230 V |
|---|---|
| product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 2400 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 60320 C20 |
| output connection type | 6 IEC 60320 C13 1 IEC 60320 C19 |
