GIGANET 1U 19″ 24 WAY PATCH PANEL SC DX/LC QD + 24x Banking Plugs + 1x 24FO SPLICE TRAY & FO MGMT KIT

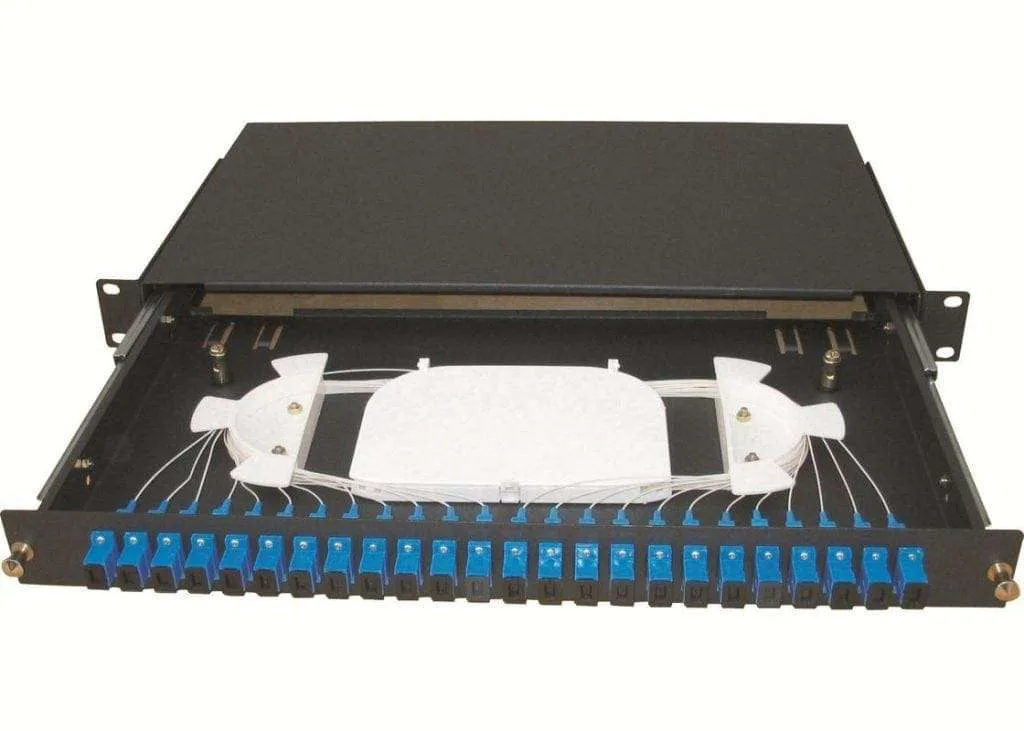

Giganet blank sliding patch panel accepts max 24 x SC- Duplex or 24 x LC-Quad within 1U space. The panel can be pre-loaded completely with the required adapters or pre-loaded with pigtails and splice accessories. The tray is locked by 2 plastic latches and lowers to a 45 degree angle when fully extended. Installation and labeling are simple and easy. When using pigtails max 72x LC, Pigtails can be spliced and with LC -connectors it can take 96 Fibers to reach Max Capacity of the panel.
Mounting Type: Rack 19”
Height Unit: 1U
Material: Cold rolled steel
Housing Color: Black
Application: Indoor IP20
Lockable: No
Dimensions : (W x D x H in MM) 482x205x44.4
Net Weight: 2.5Kg
