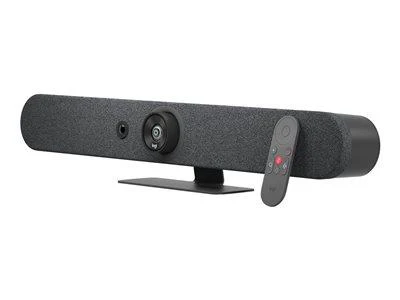

Logitech RALLY BAR MINI GRAPHITE – EMEA UK/HK

General

• Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
• Device Management: Logitech Sync
• Displays Supported: 2
• Display Resolution: Up to 4k

Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• Pan: Motorized ±25°
• Tilt: Motorized ±15°
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80.7°
• Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

Dimensions

• Height: 91.4 mm / 3.6 in
• Width: 719 mm / 2.36 ft
• Depth: 101 mm / 3.98 in
• Lens Depth: 18.5 mm / 0.73 in
• Weight: 4.03 kgs / 8.88 lbs

Speakers

• Woofer: 70mm / 2.7in
• Mid-range: 2x / 1.5in
• Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
• Sensitivity: 86+/-2dB SPL at 1W, ½ meter
• THD: 1kHz < 2%
• Speaker Sampling Rate: 48 kHz

RightSense Technologies

• RightLight™: Renders natural skin tones for each participant
• RightSight™: Maintains persistent room awareness and detects human figures to auto-frame participants
• RightSound™: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-36dBFS +/-1dB @ 1Pa
• Microphone Data Rate Output: 48 kHz
• Pickup Range: 4.5m / 15 ft
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise Suppression: AI filter
• Add-on Mics: Supports up to 2 additional
• Rally Mic Pods

Interfaces

• HDMI Out: 2
• HDMI In: 1
• USB 3.0: 3x Type A, 1x Type C
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac (MIMO)
• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
• Remote Control: Bluetooth® Low Energy
• Power & Cables
• Power Supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Power Supply Dimensions: 127mm x 51mm x 30mm
• DC Cable: 1.5m / 4.9 ft
• AC Cable: 1m / 3.28 ft
• HDMI 1.4 Cable: 2m / 6.5 ft
• USB A to USB C 3.0 Cable: 2.2m / 7.2 ft

Environmental

• Operating Temperature: 0 to 40 °C
• Storage Temperature: -40 to 70 °C
• Humidity: 10 to 95%
• BTU/hr: 57 idle, 64 in meeting

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
