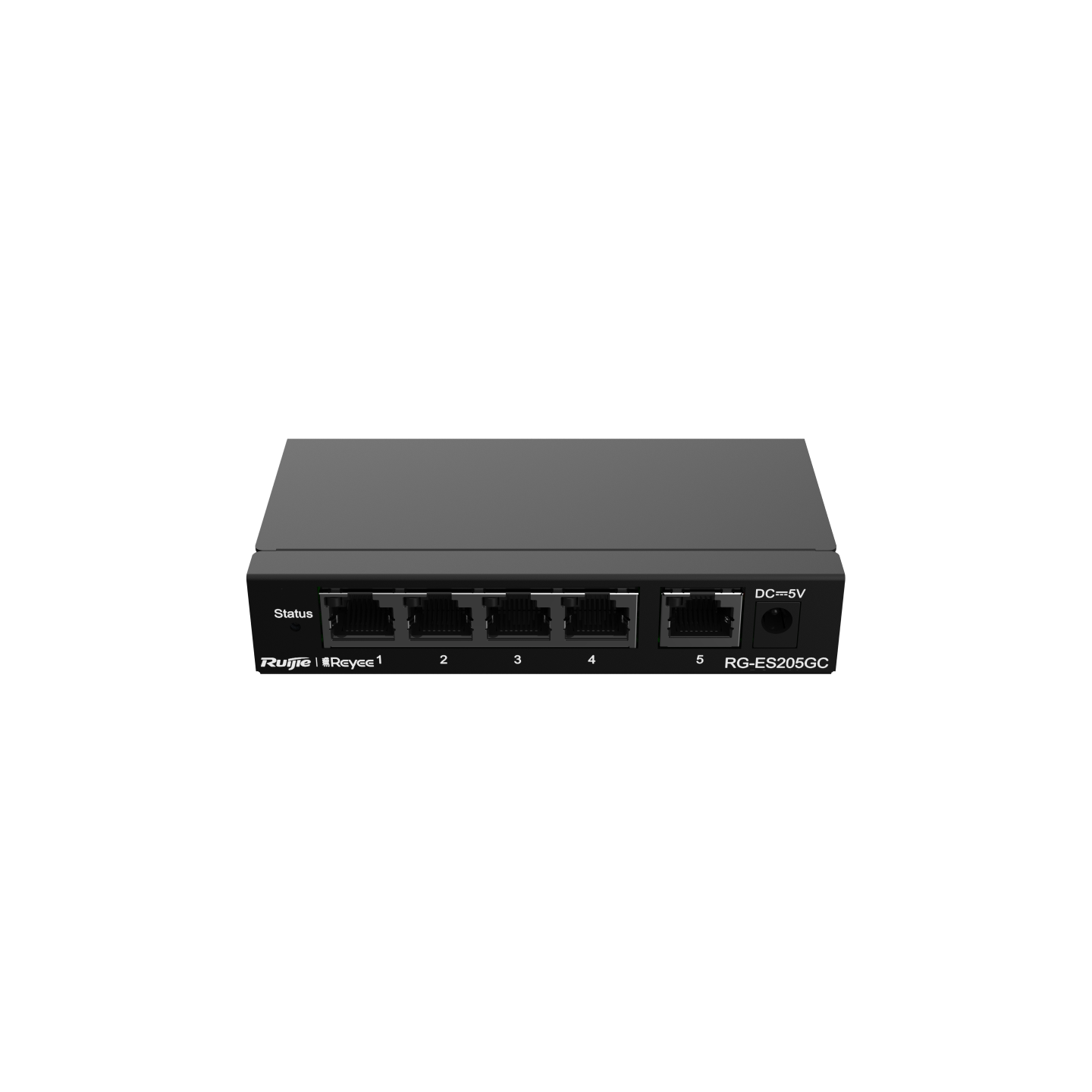

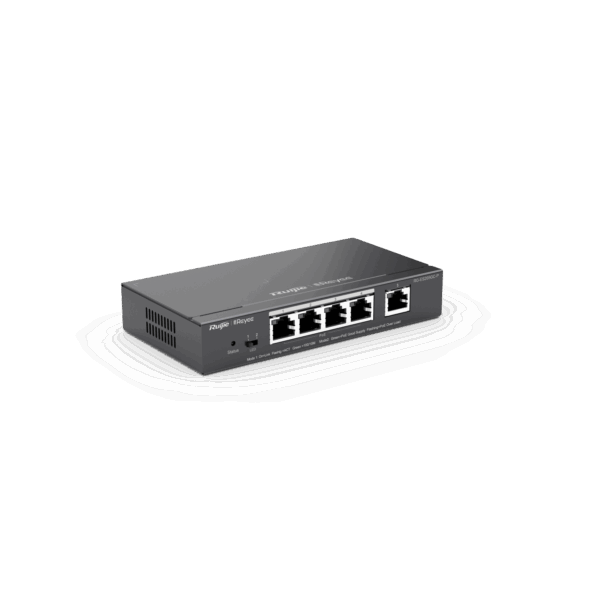

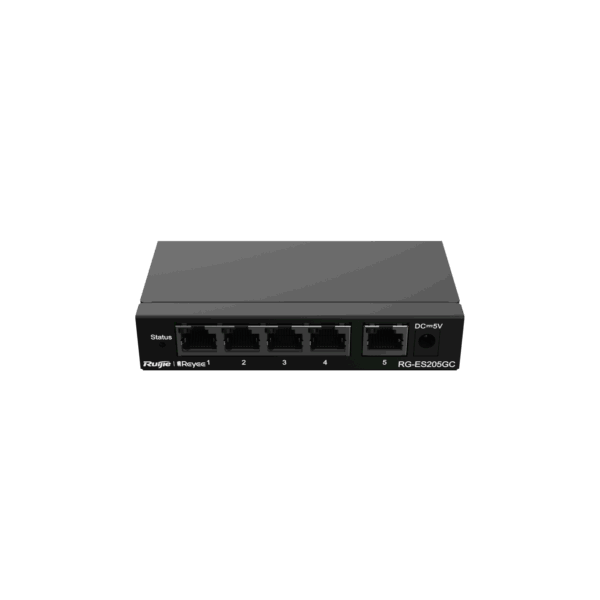

The Ruijie Reyee RG-ES205GC-P is a 5-port gigabit cloud-managed PoE switch designed for IP surveillance networks. It features 4 PoE+ ports and supports IP camera recognition, making it ideal for CCTV installations. The switch offers automatic loop prevention and lifetime management through the Ruijie Cloud. It also supports non-standard network cables for easier installation and cabling, as well as real-time network monitoring and fault positioning through the Ruijie Cloud app.
Cost-Effective Smart Cloud Managed Switches: ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.
Automatic Loop Prevention: Supports loop prevention, flow control, port isolation, and broadcast storm suppression.
Cloud, Make Your Business Easy: SON, zero touch provisioning to Cloud, Configure VLANs on Ruijie Cloud APP Monitors switch statistics at anytime anywhere, Easy maintenance, save onsite time and cost.
Plug and Play with zero configuration: Under factory default state, the smart surveillance switches require zero configuration after plugged in. The video surveillance network can be set up quickly after connecting the switch to the cameras and DVR correctly.
Full-power PoE supporting PoE cameras at maximum capacity: Ruijie Reyee smart surveillance switches support full-power PoE output, powering PoE network cameras for all PoE ports simultaneously. Whether it is day or night, the infrared light of the camera is on or off, it can ensure that all PoE network cameras are powered.
Auto PoE power adjustment for safety and energy saving: The PoE port of the smart surveillance switches support 802.3af and 802.3at, providing up to 30W power supply to the connected device. The switches will negotiate with the connected devices to automatically adjust the PoE power, thereby saving energy.
High compatibility for network cable: The smart surveillance switches not only support standard cat5/5e/6 network cables, but also support power supply and data transmission via network cables of non-standard materials (such as 0.38/0.40/0.45-diameter copper-clad steel/iron), facilitating the construction and cabling.
Fast fault positioning: The smart surveillance switches support network topology display of the entire network and monitoring the network status in real time.
On-demand VLAN configuration: In the network of villas/ stores/ offices, the network cameras and wireless APs may be connected to the same switch. Without network isolation, there may be problems such as camera screen lag and slow wireless speed.
| Specifications | |
| Basic | |
| 10/100/1000Base-T ports | 5 |
| 1000Base-X SFP ports | – |
| PoE/PoE+ ports | 4 |
| Max. PoE budget | 54W |
| Layer Type | Layer 2 |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Packet Buffer | 1 Mbit |
| MAC address table | 2000 |
| Maximum VLAN Support | 16 |
| Dimensions (W x D x H) | 148 mm x 78 mm x 26 mm |
| Weight (With package) | 0.9 kg |
| MTBF (Hours) | > 200,000 |
| Warranty | 3 Years |
| Software Features | |
| 10/100/1000M Auto/Full/Half Duplex Negotiation | Yes |
| Flow Control | Yes |
| Storm Suppression | Yes |
| Management IP | 10.44.77.200 |
| VLAN Range | 1 – 4094 |
| Port-based VLAN | Yes |
| ACL | – |
| QoS | – |
| DHCP Client | Yes |
| DHCP Snooping | Yes |
| Telnet | 1 session |
| SSH | – |
| DNS Client | Yes |
| SNMP v1/v2/v3 | – |
| Many-to-one Port Mirroring | Yes |
| Downlink Loop Protection | Yes |
| Loop Disabled Port | Yes |
| Disconnection Duration | 2s |
| Flow Control | Yes |
| Cable Testing | Yes |
| Web-based Management | Yes |
| HTTP | Yes |
| Cloud Management | Yes |
| Hardware Features | |
| Reset Button | Rear |
| Cable Hot-swappable | Yes |
| Power Supply Slot | Power adapter |
| Power Consumption | ≤ 60W |
| Power Supplies | 54V DC adapter, 1.1A |
| EEE | – |
| Fan | Fanless |
| Fan Adaptive Speed Adjustment | – |
| Acoustic Noise | Noiseless |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Port Surge | 4 kV |
| Operating Altitude (meters) | -500 to 5000 |
| Certificate | CE, RoHS |
