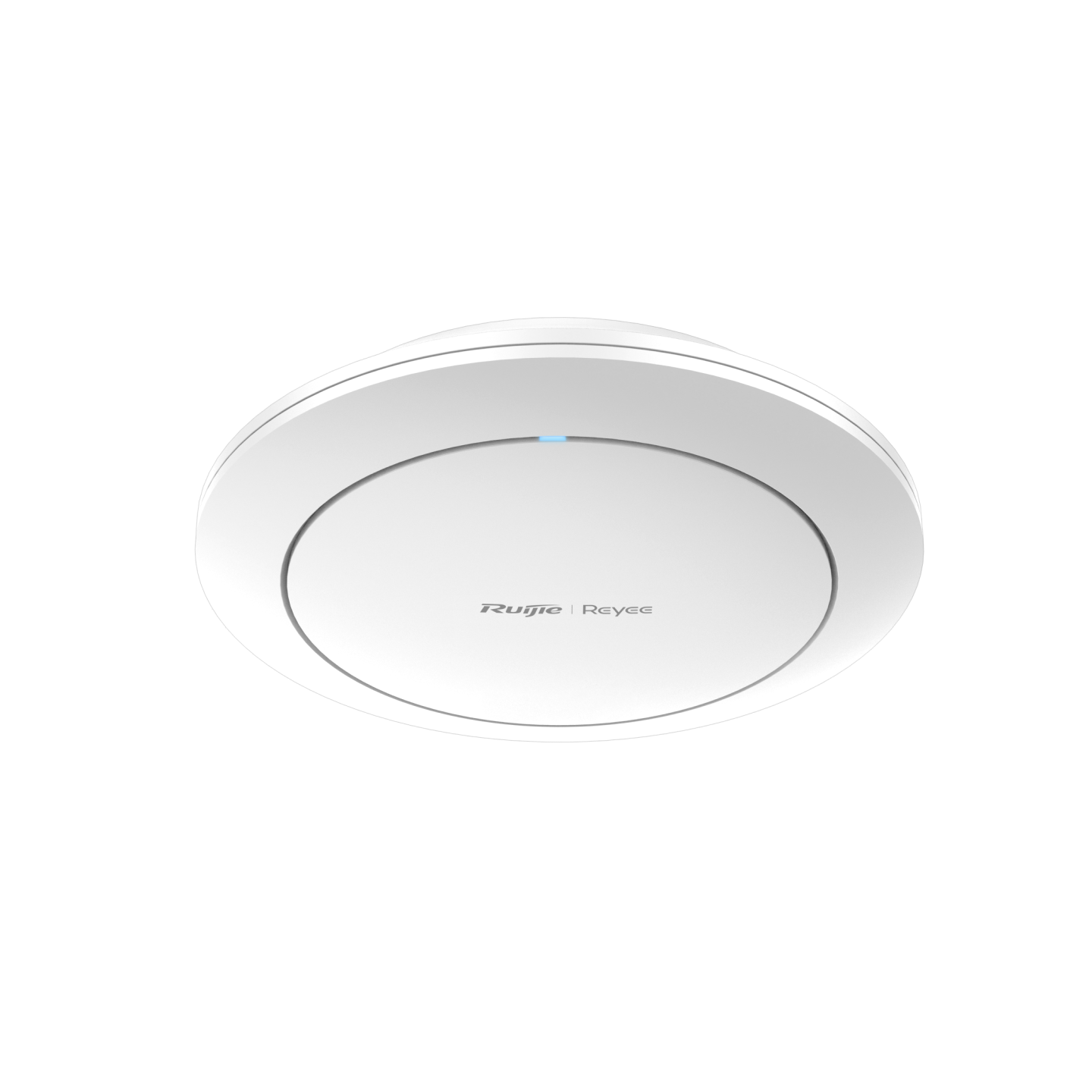

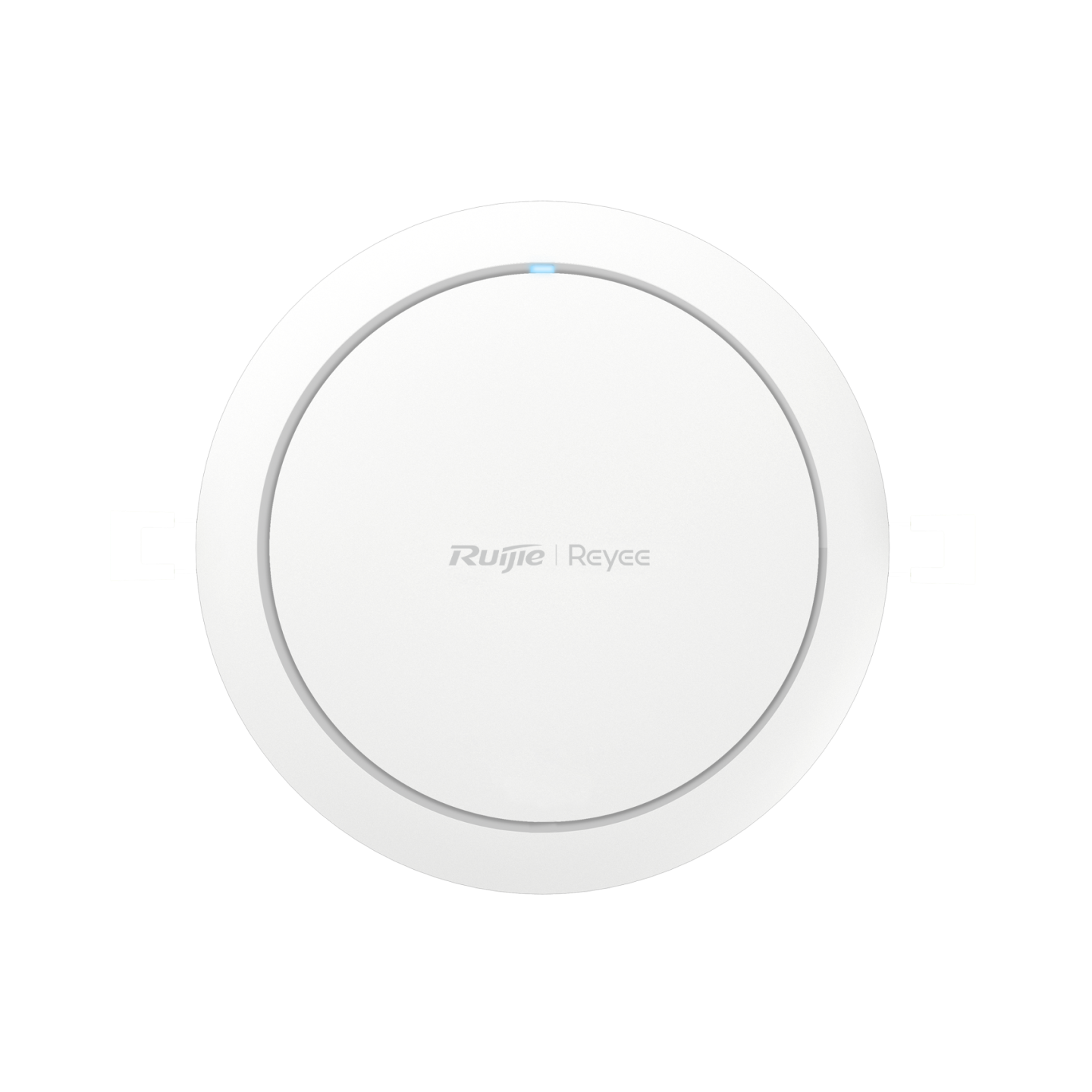

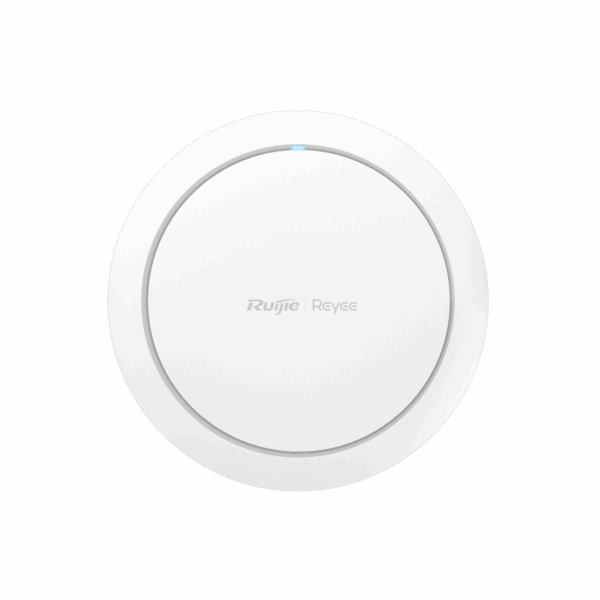

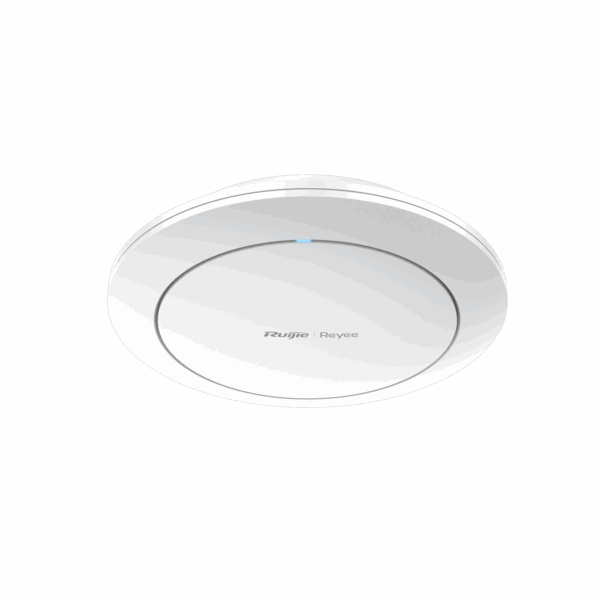

The Ruijie Reyee RG-RAP2266 is a high-performance, ceiling-mounted Wi-Fi 6 (802.11ax) access point designed for indoor environments. It offers dual-band (2.4GHz and 5GHz) connectivity with a combined data rate of up to 3000 Mbps. The RG-RAP2266 supports features like MU-MIMO, OFDMA, and seamless roaming for efficient and reliable wireless performance.
Seamless Roaming, Ever Smart Like This: Smart AI Roaming, Based on Cloud Algorithm and Technology of 802.11k/v, Guaranteed Smooth and Lag-Free Internet.
Cloud, Make Your Business Easy Reyee free DDNS: Cloud portal authentication / Remote monitoring and maintenance / Upgrade firmware via Cloud / APP library dynamic update.
Reliable Connectivity: Ideal for high-density environments, offering stable and reliable connections.
Versatile Deployment: Suitable for various indoor environments, including offices, hotels, and retail spaces.
Easy Management: Ruijie Cloud provides remote management and monitoring capabilities.
High Speed and Efficiency: Wi-Fi 6 technology ensures faster speeds and lower latency.
Specifications
Basic Features
Wi-Fi Standards
Wi-Fi6 (IEEE 802.11ax)
Wi-Fi5 (IEEE 802.11ac Wave 2)
Wi-Fi4(IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g
MIMO 2.4GHz，2×2 ,MU-MIMO
5GHz，2×2 ,MU-MIMO
Max. Wi-Fi Speed 2.4GHz: 574Mbps
5GHz: 2402Mbps
Antenna 5
Antenna Type Built-In Omnidirectional
Antenna Gain
2.4 GHz:3.53dBi
5 GHz:5.15dBi
Note
The peak gain mentioned above refers to the gain of a single antenna.
Transmit Power
Frequency bands using and the max EIRP:
Note: Country specific restrictions apply
European Union & United Kingdom
2400-2483.5 MHz, EIRP≤ 20 dBm
5150-5350 MHz, EIRP≤ 23 dBm
5470-5725 MHz, EIRP≤ 30 dBm
United States:
2400-2483.5 MHz, max output power≤30dBm & EIRP ≤ 36 dBm
5150-5250 MHz, max output power≤30dBm & EIRP ≤ 36 dBm
5250-5350 MHz, max output power<24dBm & EIRP ≤ 30 dBm
5470-5725 MHz, max output power<24dBm & EIRP ≤ 30 dBm
5725-5825 MHz, max output power≤30dBm & EIRP ≤ 36 dBm
Myanmar :
2400-2483.5 MHz, EIRP ≤ 23 dBm
5725-5825 MHz, EIRP ≤ 30 dBm
Thailand:
2400-2483.5 MHz, EIRP ≤ 20 dBm
5150-5350 MHz, EIRP ≤ 23 dBm
5470-5725 MHz, EIRP ≤ 30 dBm
5725-5825 MHz, EIRP ≤ 30 dBm
Indonesia:
2400-2483.5 MHz, EIRP ≤ 27 dBm
5150-5350 MHz, EIRP ≤ 23 dBm
5725-5825 MHz, EIRP ≤ 23 dBm
Egypt:
2400-2483.5 MHz, EIRP ≤ 20 dBm
5150-5350 MHz, EIRP ≤ 23 dBm
Fixed Ports
1×10/100/1000 Base-T port
1xDC port
1×Reset button
Max. Clients 512
Recommended Clients 110
Max. SSIDs 8
Recommended Wi-Fi
Coverage Radius
2.4GHz: 40 meters
5GHz: 70 meters
The Wi-Fi coverage is related to the installation environment of the access point.
Max. Wi-Fi Coverage Radius 150 meters
Operation Frequency
Bands
802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
802.11a/n/ac/ax:5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz ,
5.725 GHz to 5.850 GHz
country-specific restrictions apply
Software Features
WLAN Basic Features
Power Adjustment
Frequency Bandwidth 2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80/160 MHz
Roaming
Layer 2 roaming
Layer 3 roaming
802.11k/v/r
OFDMA
Beamforming
Target wake time (TWT)* Not Support
WMM
Radar Signal Detection and
Frequency Hopping (DFS)
WLAN Security
Wi-Fi Password 16 bits
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK;
Blacklist and Whitelist
Prevent Fragmentation
Attack Not Support
Prevent ICMP Attack Not Support
Enhanced User Experience
Wi-Fi Optimization
STA Limit
Removing Low-RSSI STAs
Adjusting Sending Rate
of Beacon and Probe
Response
Syslog Recording Why
Users Lose Connection
Auto Channel and Power
Adjustment on Cloud
RSSI Threshold for STA
Access
Load Balancing
Networks
Network Access Mode
PPPoE Client
DHCP Client
Static IP
Avoidance of WAN IP
Address Conflicts Not Support
VLAN
DHCP Server
System
Cloud Management
APP Management
S
LED Indicator 1× system LED indicator
Buttons 1×Reset button
Dimensions (W × D × H) 220 mm x 220 mm x 52.6 mm
(8.66 in. x 8.66 in. x 2.07 in., without the mounting bracket)
Weight ≤ 0.5 kg (Without Mounting Bracket)
DC Port Dimensions
Outer Diameter: 6.3 mm
Inner Diameter: 2.0 mm
Length: 9.8 mm
Installation Ceiling-Mountable

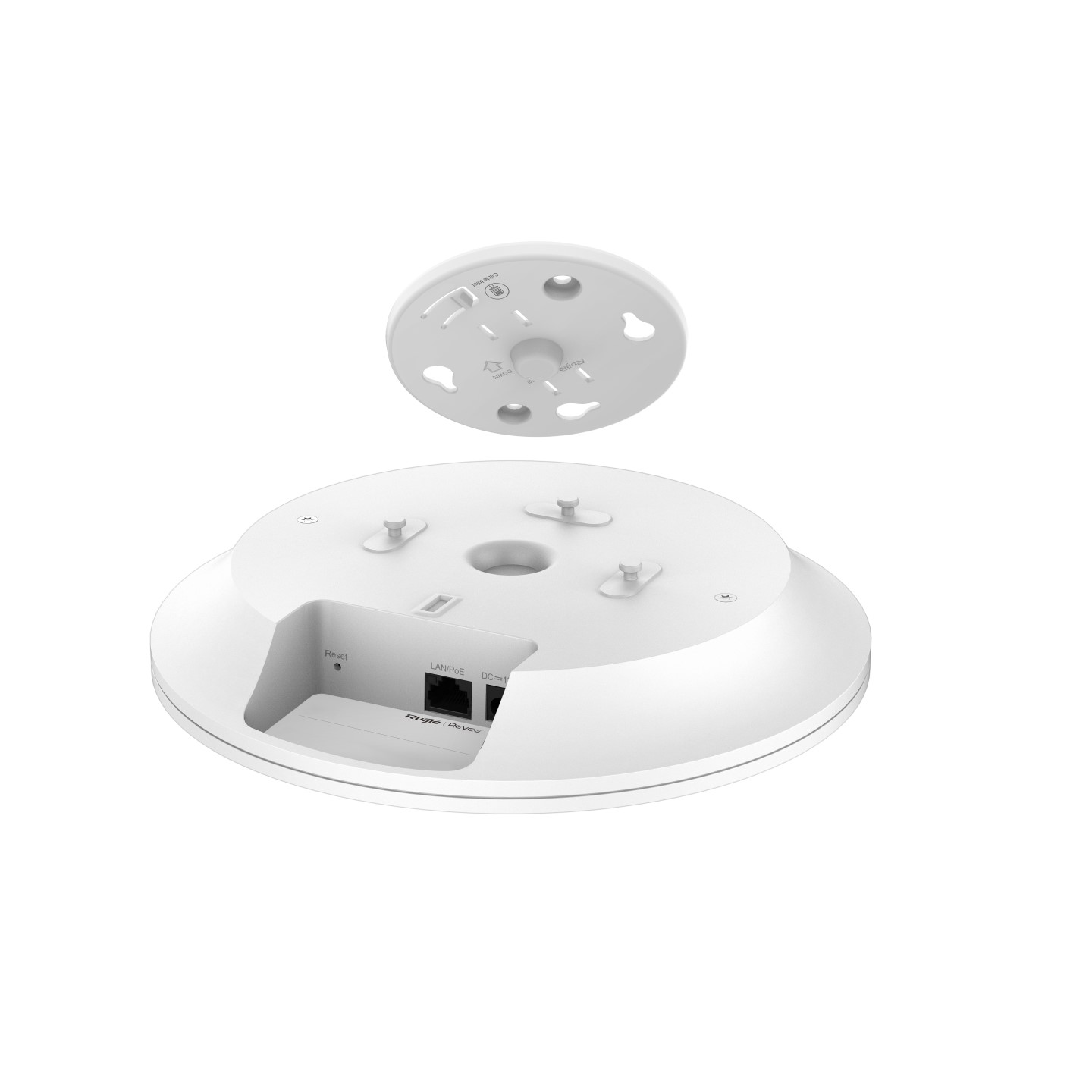

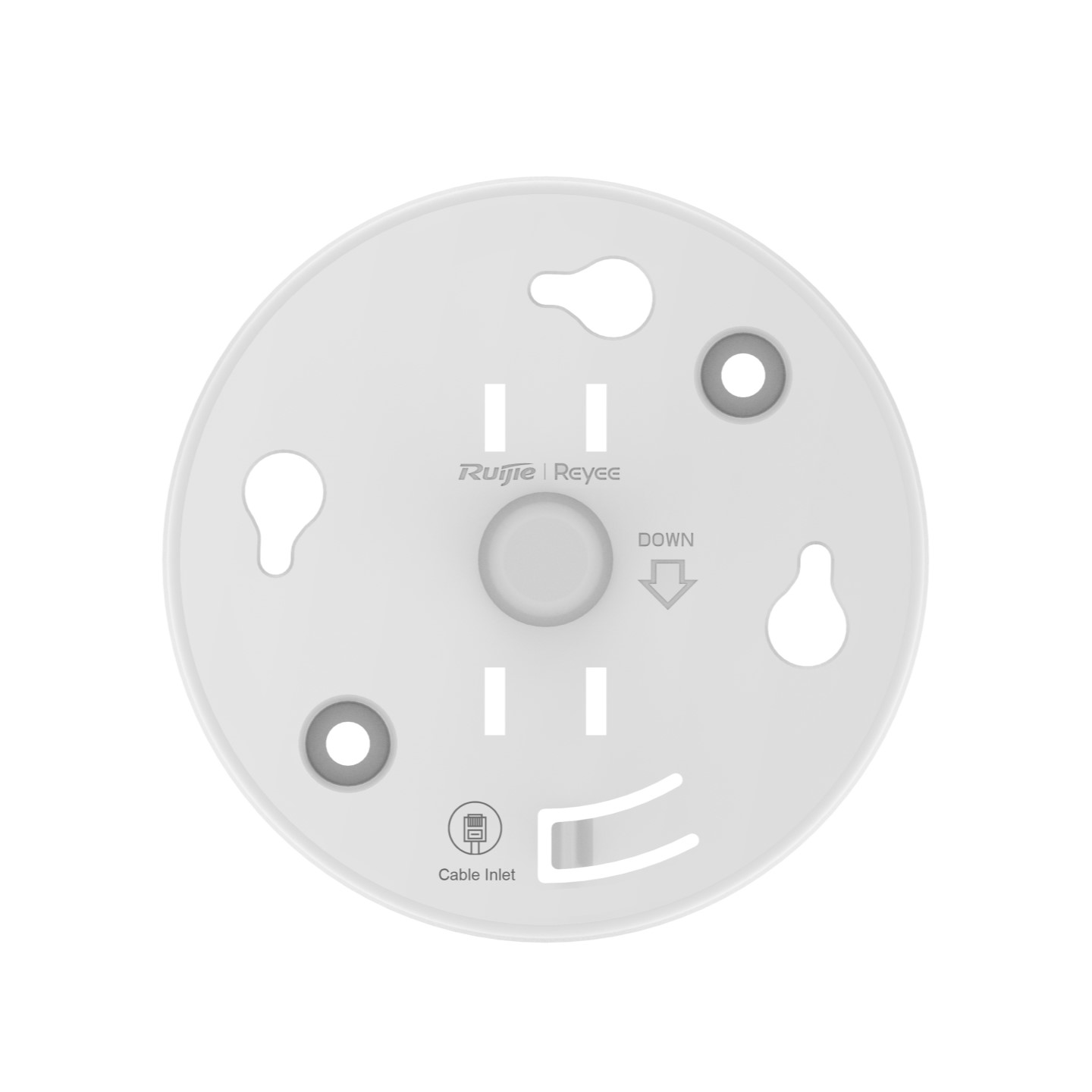

Mounting Bracket
Dimensions (W × D × H) 113.5 mm x 113.5 mm x 13.5 mm
Mounting Hole Pattern 80 mm
