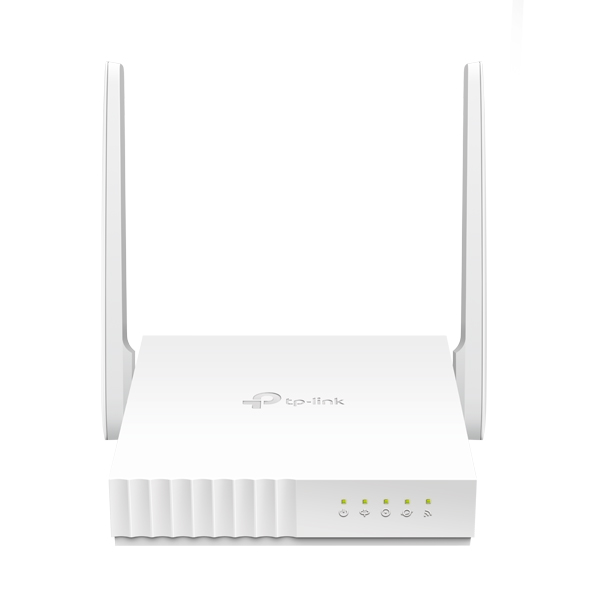

TP Link 300Mbps Wireless N Gigabit GPON Router
TP Link 300Mbps Wireless N Gigabit GPON Router - Image 2

TP Link 300Mbps Wireless N Gigabit GPON Router

SKU: XN020-G3
UShs 162,000
In Stock
Add to wishlist Compare
Other people want this. 2 people have this in their carts right now.
SKU: XN020-G3 Categories: , ,
  • TP Link 300Mbps Wireless N Gigabit GPON Router

Description

300Mbps Wireless N Gigabit XPON Router

  • A XPON modem with wireless AP and 1-port Switch
  • Compliant with the ITU G.983/G.984/G.988 EPON/GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.
  • TR-069 protocol enables an operator to remotely configure and manage end-user devices.

HARDWARE FEATURES
Interface 1SC/APC Port, 1 10/100/1000Mbps LAN Port
Button Reset Button
External Power Supply 12V/0.6A
Wireless Standards IEEE 802.11g, 802.11b,802.11n
IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab
Dimensions ( W x D x H ) 4.5×4.2×1.0 in. (115×106.7×24.3mm)
Antenna External , 2 x 2 5dBi for 2.4GHz
GPON Standards ITU G.983, ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4, ITU G.988

WIRELESS FEATURES
Wireless Standards IEEE 802.11g, 802.11b,802.11n
Frequency 2.4GHz
Signal Rate 300Mbps at 2.4GHz
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power <20dBm (2.4GHz)
Wireless Schedule Support 2.4GHz Schedule

SOFTWARE FEATURES
Quality of Service ATM QoS, QoS
Advanced Features SN, Password, SN + Password Authentication Mode, Upstream and Downstream FEC, AES encryption, Dynamic Bandwidth, Allocation(DBA) support NSR/SR, 802.1Q VLAN, Static Routing, IGMP v1/v2/v3, 16 T-CONTs, 256 GEM Ports
Security NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Management Features OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
Protocols Supports IPv4 and IPv6

OTHERS
Certification CE
Package Content 300Mbps Wireless N Gigabit GPON Router XN020-G3
RJ45 Ethernet Cable
Quick Installation Guide
Power Adapter
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
