| HARDWARE FEATURES | |
|---|---|

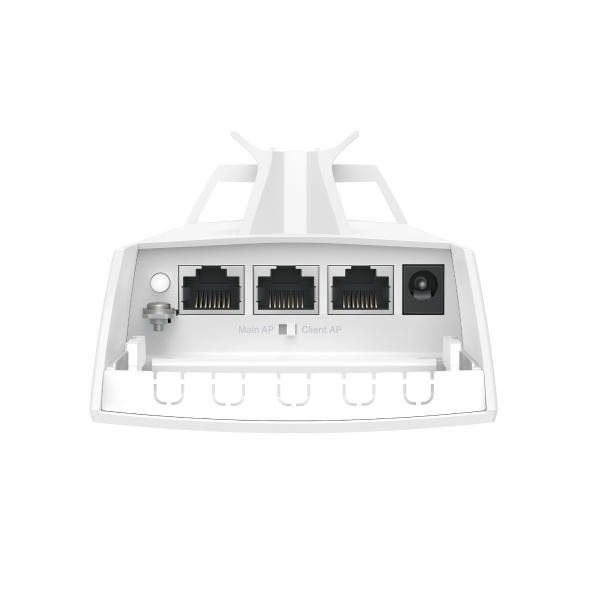

| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| DIP Switch | Role Switch |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE |
| Max. Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 10.9 × 3.1 × 2.4 in (276 × 79 × 60 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 14.0 dBi Horizontal:43°, Vertical: 18° |
| Weatherproof Enclosure | IP65 |

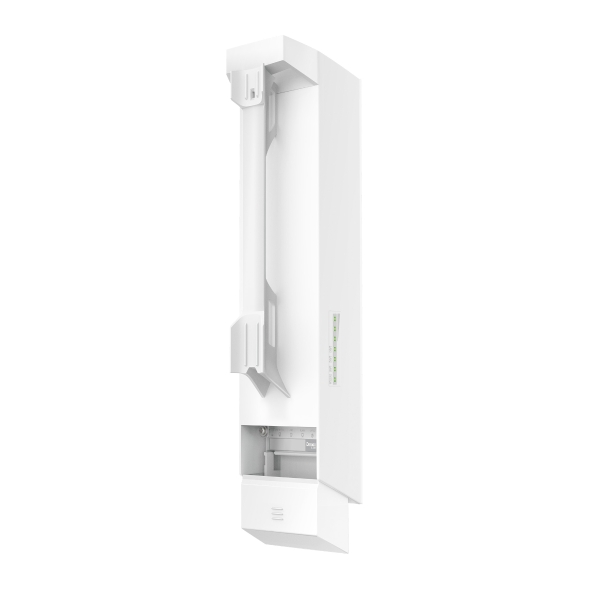

| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 5000m(16400ft) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2x2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP) <30dBm (5 GHz band3, EIRP) • FCC: |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP215-Bridge KIT • Installation Guide • Mounting Kit |
| Lightning Protection | • Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
