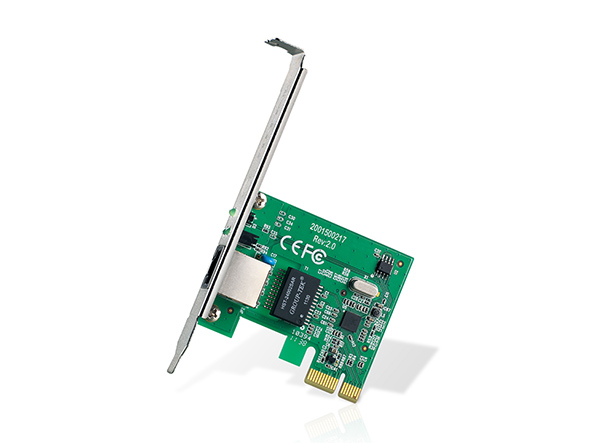

TPLINK Gigabit PCI Express Network Adapter

SKU: TG-3468
UShs 43,000
In Stock
Other people want this. 1 people have this in their carts right now.
SKU: TG-3468 Categories: ,
  • 10/100/1000Mbps PCIe Adapter
  • 32-bit PCIe interface, saving the finite chassis space
  • Wake-on-LAN, convenient to manage over LAN
  • Includes a low profile bracket

Description

Product Description

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

TG-3468 Features

  • Wake-on-LAN supporting Auto-Negotiation and Auto MDI/MDIX Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
  • Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging Supports power down/link down power saving DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP Interface: 32-bit PCIe 1.0a Transmission Rate: 10/100Mbps for Half-Duplex mode; 20/200/2000Mbps for Full-Duplex mode
  • Jumbo Frame: 4k Bytes Port: 1x 10/100/1000Mbps RJ45 Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100?? STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
  • LED Indicator: 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex Safety & Emission: FCC, CE Operating System: DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification CE, FCC, RoHS
Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
