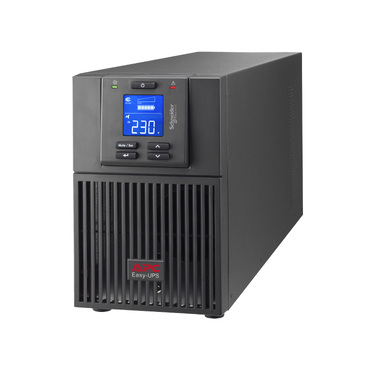

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions.
Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Intelligent Card Slot: Customize UPS capabilities with management cards.
LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
Input
Nominal Input Voltage: 230V
Input frequency: 40 – 70 Hz
Input Connection Type: IEC 60320 C14
output connection type: 3 IEC 60320 C13
Cord Length: 1.5meters
Input voltage range for main operations: 160 – 280V
Input voltage adjustable range for mains operation: 110 – 285 (half load)V
Number of Power Cords: 1
Output
Output power capacity: 800Watts / 1.0kVA
Max Configurable Power (Watts): 800Watts / 1.0kVA
Nominal Output Voltage: 230V
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load: 88.0 %
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Output Connections: (3) IEC 320 C13 (Battery Backup)
Bypass: Internal Bypass (Automatic and Manual)
Conformance
Product certifications: CE / UKCA / EAC / TISI
Standards: EN/IEC 62040-1:2019/A11:2021 | EN/IEC 62040-2:2006/AC:2006 | EN/IEC 62040-2:2018
Batteries & Runtime
Battery type: Lead-acid battery
Battery voltage: 24 V
Number of battery filled slots: 1
Number of battery free slots: 0
Battery recharge time: 4 h
Battery life: 3…5 year(s)
Battery charger power: 30 W rated
Environmental
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -20…50 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
Acoustic level: 50 dBA
heat dissipation: 372 Btu/h
IP degree of protection: IP20
Communications & Management
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots: 1
control panel: Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate: 600 J
Physical
Mounting location: Front
Mounting support: Floor
Mounting preference: No preference
Mounting mode: Not rack-mountable
USB compatible: Yes
Mounting position: Vertical
Colour: Black (RAL 7010)
Dimensions (WxDxH): 14.5 cm x 28.8 cm x 22.3 cm
Net weight: 9.3 kg
