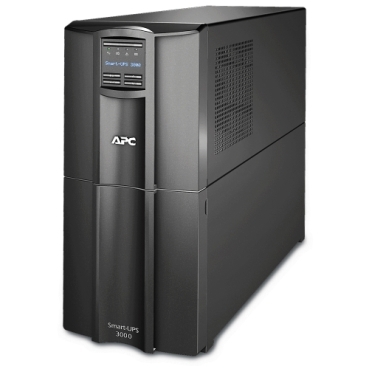

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 2-year warranty and comes with a built-in lead-acid battery. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually in Stock |
|
Run time for load
W information_stroke
Min-max: 270-2700 W
|
5min 4s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 % |
| Product or component type | Uninterruptible power supply (UPS) |
| Communication port type | SmartConnect Ethernet port SmartSlot |
|---|---|
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Run Time |
View Runtime Graph
|
|---|---|
| Efficiency |
View Efficiency Graph
|
| Battery type | Lead-acid battery |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery |
RBC55
|
| Battery charger power | 271 W rated |
| Provided equipment | USB cable |
|---|---|
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Number of rack unit | 0U |
|---|---|
| Number of cables | 1 |
| Colour | Black |
| Height | 43.5 cm |
| Width | 19.7 cm |
| Depth | 54.4 cm |
| Net weight | 52.5 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V 240 V |
| Input Connection Type | IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British |
| Input voltage limits | 151...302 V adjustable 160...286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Main Output Voltage | 230 V |
|---|---|
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 2700 W |
| rated power in VA | 3000 VA |
| output connection type | 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Product certifications | CE EAC RCM VDE UK PSTI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 53 dBA |
|---|---|
| Heat dissipation | 375 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| control panel | Multifunction LCD status and control console |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge energy rate | 365 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 69.901 cm |
| Package 1 Width | 38.100 cm |
| Package 1 Length | 76.200 cm |
| Package 1 Weight | 63.548 kg |
