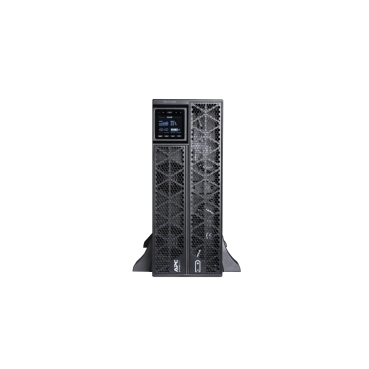

APC Smart-UPS RT 6kVA 230V

APC Smart-UPS RT 6kVA 230V

SKU: SRTG6KXLI
UGX 17,038,000
In Stock
Add to wishlist Compare
Other people want this. 7 people have this in their carts right now.
SKU: SRTG6KXLI Categories: , ,
Output power capacity: 6.0kWatts / 6.0kVA
Rack Height: 4U
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: Hard wire 3-wire (1P + N + E)

Description

Product Description

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Product Features

Automatic internal bypass

Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

EPO

Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Intelligent Card Slot

Customize UPS capabilities with management cards.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Serial connection

Use your PC to access additional power protection and management features for your UPS via a serial port.

USB connection

Use your PC to access additional power protection and management features for your UPS via a USB Port.

Output

Max Configurable Power (Watts)

6.0kWatts / 6.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

94.0 %

Output Voltage Distortion

1 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto sensing

Input voltage range for main operations

110 – 300 60 % load, 176 – 300 Full loadV

Efficiency at Full Load

94.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

4hour(s)

Nominal Battery Voltage

192 V

Expected Battery Life (years)

3 – 5

Battery Charge Power (Watts)

235 Watts

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multifunction LCD status and control console

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

173MM, 17.3CM

Maximum Width

438MM, 43.8CM

Maximum Depth

710MM, 71.0CM

Net Weight

61.0KG

Shipping weight

71.0KG

Shipping Height

1232MM, 123.19CM

Shipping Width

836MM, 83.6CM

Shipping Depth

600MM, 60.0CM

Color

Black

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3000meters

Storage Temperature

-15 – 60 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15000meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1172.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, TISI, UKCA

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
