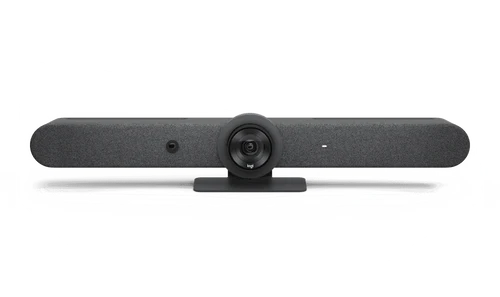

LOGITECH RALLY BAR ALL IN ONE VIDEO BAR

Name: LOGITECH RALLY BAR ALL IN ONE VIDEO BAR
SKU: 960-001312
Availability: InStock

SKU: 960-001312

UShs 18,930,000

In Stock

Add to wishlist Compare

Other people want this. 35 people have this in their carts right now.

SKU: 960-001312 Categories: Computer Accessories, Logitech

All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.
Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.

Description
Specification

Description

Logitech Rally Bar All-in-One Conference Video Camera (960-001312)- 4K UHD Camera, Simple to Manage, High-Performance Speakers, Multiple mounting options, 1-Year Warranty

Key Features:

Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2 (up to 1080p)
Display Resolution: Up to 1080p
Network Protocol Support: IPv4, IPv6

Certifications & Compatibility
- Certifications
  - Microsoft Teams Rooms on Android™ 5For medium sized rooms
  - Microsoft Teams Rooms on Windows 6For medium sized rooms
  - Zoom Room™
  - Tencent Meeting Rooms
- Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including
  - Microsoft Teams Rooms on Android
  - Zoom Rooms
  - GoToRoom®
  - Pexip Room
  - RingCentral Rooms™
  - Tencent Meeting Rooms
- USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application
- For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications.
GENERAL SPECIFICATIONS
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2 (up to 1080p)
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Resolution: 0.71 in (18 mm) key pitch
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm / 2.7 in
- Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz <2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: 22.97 ft (7 m)
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- USB: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
- DC Cable: 5 ft (1.5 m)
- AC Cable: 4.9 ft (1 m)
- HDMI 1.4 Cable: 6.5 ft (2 m)
- USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- MOUNTS: Wall Mount for Video Bars, TV Mount for Video Bars
- Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity: Cable USB 10 Logitech Strong [32.81 ft (10 m), 65.6 ft (25 m), 147.64 ft (45 m)]
- Touch Controller: Logitech Tap and Tap IP 7Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
PACKAGE CONTENTS
- Rally Bar
- Power supply
- AC power cord
- HDMI cable
- USB cable
- Remote control
- Lens caps for main camera and AI Viewfinder
- User documentation
