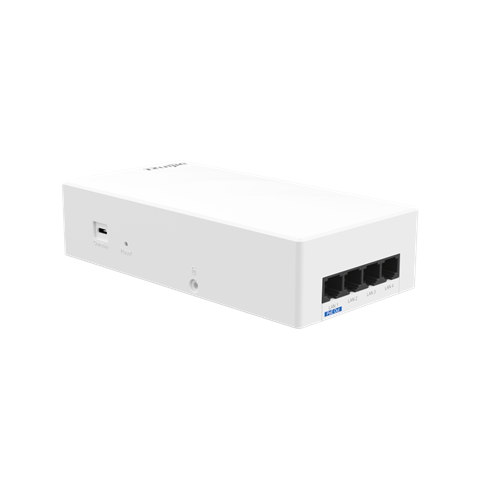

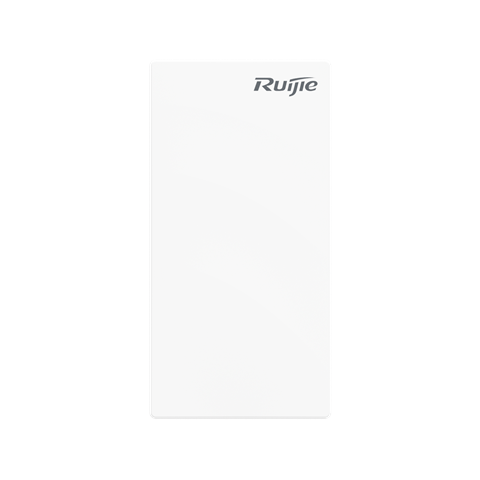

Ruijie RG-AP180P-L Wi-Fi 6 Dual-Radio 2.976 Gbps Wall Plate AP

SKU: RG-AP180P-L
UGX 592,000
In Stock
Other people want this. 1 people have this in their carts right now.
SKU: RG-AP180P-L Categories: ,

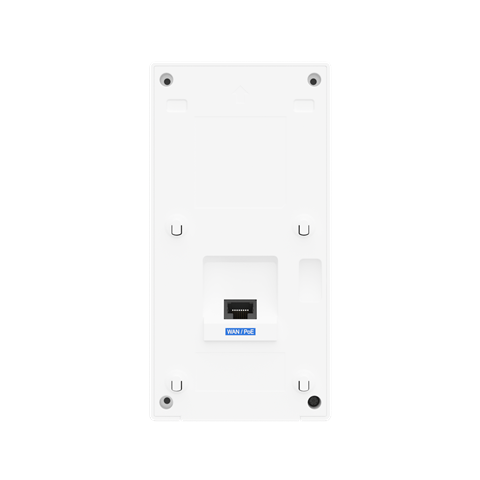

  • Flat Rear Panel, Easy Installation on Any Wall in All Countries
  • 2.5 Gbps Uplink Port, Achieving Ultra-High Speed Access in Rooms

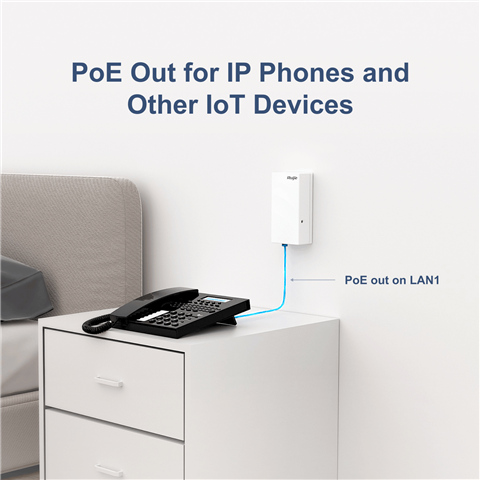

  • PoE Out for IP Phones and Other IoT Devices
  • 2.976 Gbps High Speed with 160 MHz Band
  • Ruijie cloud management, intelligent optimization

Description

The Ruijie RG-AP180P-L Wall Plate WiFi 6 Access Point is a dual-radio 802.11ax-compliant WiFi 6 wireless access point (AP) for general education, higher education, government, finance, business, and other indoor high-density scenarios. It adopts the 802.11ax (WiFi 6) standard and supports the 2.4 GHz and 5 GHz frequency bands. It can provide an access rate of up to 2.976 Gbps. The ultra-fast wireless rate eliminates the performance bottleneck.

Key Features

  • WiFi 6 dual-radio wireless access point.
  • Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards.
  • Up to four (4) spatial streams.
  • Data rate of up to 2.976Gbps with 160 MHz band.
  • OFDMA, MU-MIMO technologies for minimal wireless signal interference.
  • Fat/Fit/Cloud mode switchover.
  • One (1) 100/1000/2500Base-T Ethernet uplink port with auto-negotiation, compliant with IEEE 802.3af/802.3at standard (PoE/PoE+).

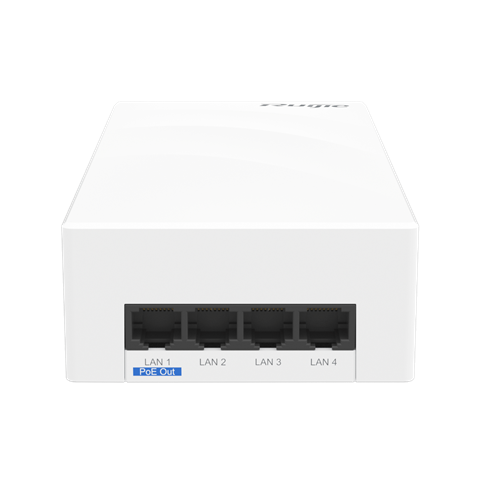

  • Four (4) 10/100/1000Base-T Ethernet ports with auto-negotiation, LAN 1 port supports 48 V/10 W power supply to an attached device.
  • Ruijie cloud management with intelligent optimisation.
  • Free mobile applications for Ruijie Cloud customers.
Dimensions and Weight RG-AP180P-L
Unit dimensions(W x H x D) 86 mm x 170 mm x 43 mm (3.39 in. × 6.69 in. × 1.69 in.)
Shipping dimensions(W x D x H) 399 mm x 367 mm x 245 mm (15.71 in. × 14.45 in. × 9.65 in.)
Unit weight Main unit: 0.3 kg (0.66 lbs)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping weight 11.53 kg (25.42 lbs)
Mounting Wall-mount (a mounting bracket is delivered with the main unit)

Junction box-mount (86 mm/European-standard/American-standard junction box)

Color Elegant white
Lock option Kensington lock



Wi-Fi Radio RG-AP180P-L
Radio design Dual-radio and up to four spatial streams:

● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies Radio 1, 802.11b/g/n/ax:

● 2.400 GHz to 2.4835 GHz (HE20/HE40), ISM, channels 1 to 13

Radio 2, 802.11a/n/ac/ax:

● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

● 5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region.

Data rates Combined peak data rate: 2.976 Gbps

Radio 1: 2.4 GHz, 574 Mbps

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

Radio 2: 5 GHz, 2.402 Gbps

● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

Data rate set The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

● 802.11b: 1, 2, 5.5, 11

● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160)

● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Packet aggregation 802.11n/ac/ax: A-MPDU and A-MSDU
Antenna type Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Antenna gain 2.4 GHz: 5 dBi

5 GHz: 5 dBi

Maximum transmit power 2.4 GHz radio: 20 dBm (17 dBm per chain)

5 GHz radio: 20 dBm (17 dBm per chain)

Note: The transmit power is limited by local regulatory requirements.

Thailand

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm

5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm

Power increment Configurable in increments of 1 dBm
Radio technologies 802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types 802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
