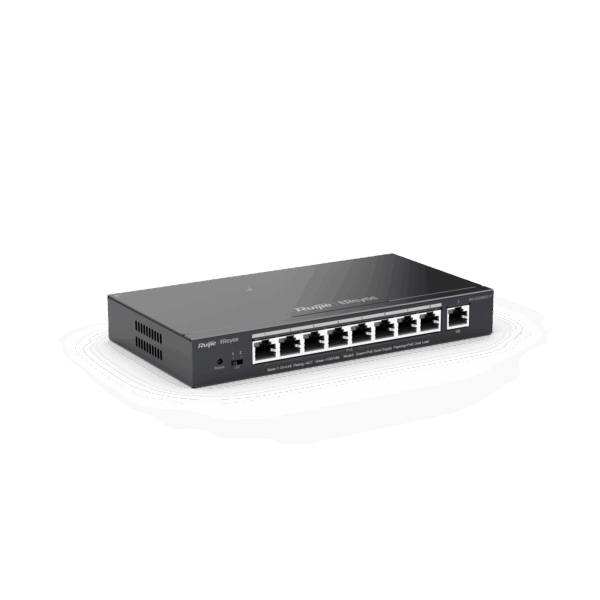

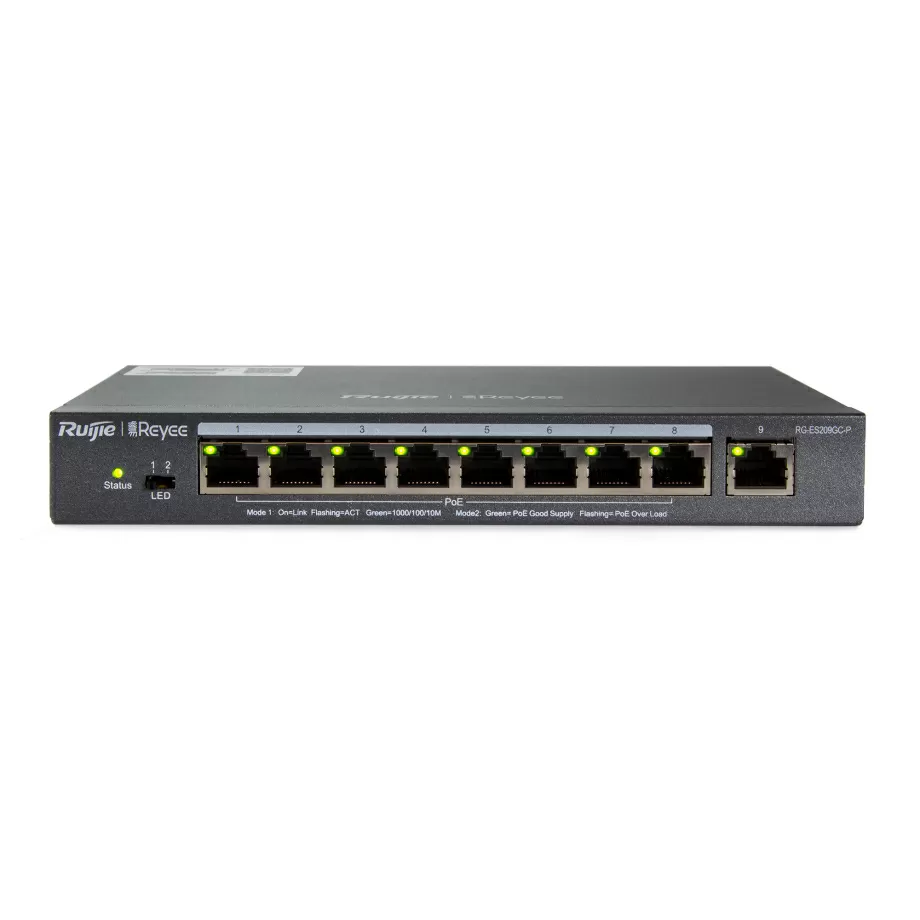

The Reyee RG-ES209GC-P is a 9-port Gigabit Ethernet PoE+ switch designed for small to medium businesses (SMBs) and CCTV deployments. It features 8 Gigabit PoE+ ports with a total power budget of 120W, enabling it to power devices like IP cameras, access points, and VoIP phones. A dedicated Gigabit uplink port provides connectivity to larger networks. It offers features like IP camera recognition, automatic loop prevention, and cloud management via Ruijie Cloud.
Exceptional Performance and Reliability: Reyee PoE Switches provide an incredibly reliable and efficient network performance, making them ideal for applications across many industries and sectors. The RG-ES200 series offers cloud-managed switches with up to 24 PoE+ ports. Reyee PoE Switches provide robust performance with features such as port security, loop guard and storm control, making them a safe and secure choice for PoE applications.
Advanced Features for Increased Productivity: Reyee PoE Switches are packed with advanced features to ensure optimal performance and increased productivity. The RG-ES200 series supports PoE scheduling, PoE Auto Recovery and PoE port setting. By providing these advanced features, Reyee PoE Switches help to reduce network downtime and improve the overall user experience.
9 Gigabit Ports: 7 PoE+ ports + 2 uplink ports for high-speed data transfer.
PoE+ Support: Powers IP cameras, APs, and VoIP phones via Ethernet cables, reducing extra wiring.
High PoE Power Budget: Supports multiple PoE devices with stable and efficient power distribution.
Plug-and-Play: No configuration required, ensuring easy deployment.
Intelligent Power Management: Optimizes power distribution to prevent overload.
Compact & Durable Design: Ideal for offices, retail stores, and security setups.
Stable and Secure Transmission: Built-in surge protection and enterprise-grade security.
| Specifications | |
| PERFORMANCE | |
| Switching capacity | 18Gbps |
| Switching Cache | 1.5Mbit |
| Package forwarding rate | 13.392Mpps |
| Ports | 9 x 10/100/1000 Base-T ports (PoE/PoE+) 1 10/100/1000 Base-T uplink port |
| PoE Standard | IEEE 802.3at / 802.af |
| PoE Power Budget | 120W |
| Speed / Duplex mode | Auto / Half / Full duplex Speed auto / 10/ 100 /1000 |
| MAC address | 4K |
| Maximum Number of VLANs | 16 |
| Allowed VLAN ID | 1 ~ 4094 |
| Port-based VLAN | Support |
| Flow Control | Support |
| Loop Protection | Support |
| Unknown Unicast Suppression | Support |
| Multicast / Broadcast Storm Suppression | Support |
| Mirroring | Many-to-One Mirroring |
| Port Isolation | Support |
| Cable Testing | Support |
| DNS | DNS Client |
| Telnet | Support |
| MACC | Support |
| Port Surge | Common mode: 4KV |
| Electrostatic Discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power Consumption | ≤ 130W |
| Power supply | External power adapter 100-240V |
| Dimensions (W x D x H) | 202*108*28mm |
| Weight | 1.3 kg (with package) |
| MTBF | >200K |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Operating Altitude | -500 ~ 5000 meters |
| Fan | Fanless |
| Management | Support management and configuration through web management interface, MACC cloud platform and mobile app |
| Safety Standard Ground Resistance | GB4943-2011, EN 62638-1 |
| EMC | GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035 |
