RG-RAP52-OD outdoor Access point is compatible with Starlink router
Small But Make A Difference: AC1300 Wave 2 Outdoor Mesh Mini-size AP For Villa & Retail

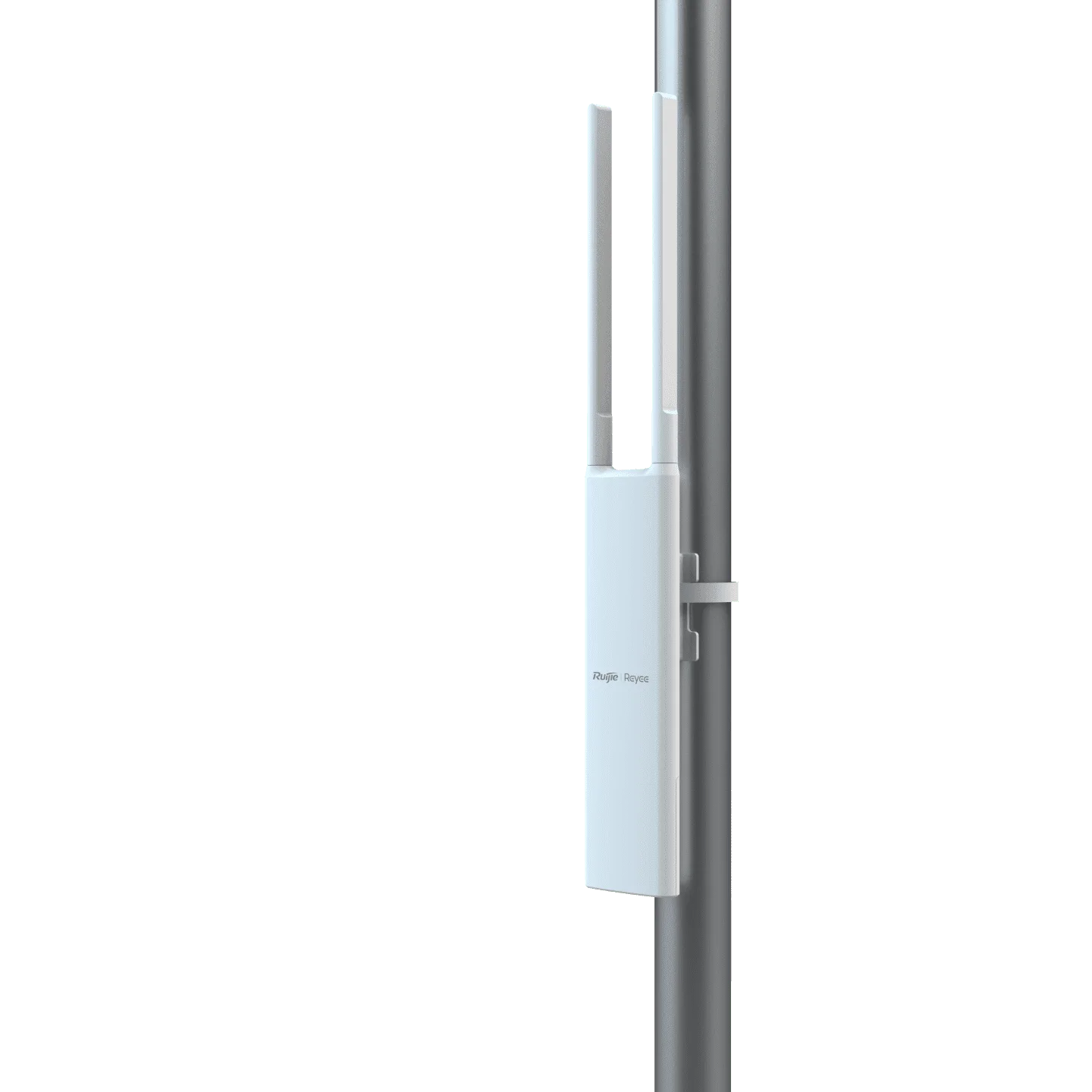

Flexible Installation to Fit Multi-Scene: Wall Mounting and Pole Mounting
Reliable wi-fi performance and superior coverage for business: AC1300 chip Solution along with enterprise high-gain amplifiers and subtle design of antennas, make the whole device perform perfectly in coverage and quality wi-fi delivered.
Refined Appearance: Incredibly Thin Impressively Small. Feeling without Seeing.
Consistent Protection, Stable Signal: Weatherproof – Rated as IP65 during Ingress Protection Testing
Raining-Proof: Within A distance of 2.5 meters strongly sprayed by water with a flow rate of 12.5±0.625(L/min).
Dust-Proof: Highest Protection to prevent tiny dust into the inside of device.
Surge-Protection: 4kV Lightning Protection 15kV ESD Protection.
Cloud, Make Your Business Easy
Omnidirectional: Wider Coverage of Service Area.
Specifications
Model RG-RAP52-OD
Hardware Specifications
Wi-Fi Protocols
5 GHz Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
2.4 GHz Wi-Fi 4:IEEE 802.11b/g/n
Operating Frequency Bands
(country-specific restrictions
apply)
5 GHz
5.150 GHz to 5.350 GHz,
5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz
2.4 GHz 2.400 GHz to 2.4835 GHz
Spatial Streams
5 GHz 2 spatial streams, 2×2 MIMO
2.4 GHz 2 spatial streams, 2×2 MIMO
Antenna
Omnidirectional Yes
5 GHz Antenna
Gain 4.0dBi
2.4 GHz
Antenna Gain 3.0dBi
Channel Width
5 GHz Auto/20/40/80 MHz
2.4 GHz Auto/20/40 MHz
Data Rate
Max
Throughput 1266Mbps
5 GHz 866Mbps
2.4 GHz 400Mbps
Max. Transmit Power
5 GHz ≤125mW(21dBm)
2.4 GHz ≤160mW(22dBm)
Wi-Fi Coverage
Max. Wi-Fi
Coverage
Range (5 GHz)
400m
Max. Wi-Fi
Coverage
Range (2.4
GHz)
300m
Specifications
Model RG-RAP52-OD
Hardware Specifications
Modulation Modulation
OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps,
16QAM@24 Mbps, 64QAM@48/54 Mbps
DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and
CCK@5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM,
256QAM
Receiver Sensitivity Receiver
Sensitivity
11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-
85dBm(11Mbps)
11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，-
76dBm(36Mbps)，-71dBm(54Mbps)
11n: -83dBm(MCS0)，-65dBm(MCS7)，-
83dBm(MCS8)，-65dBm(MCS15)
11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9)
11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9)
11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9)

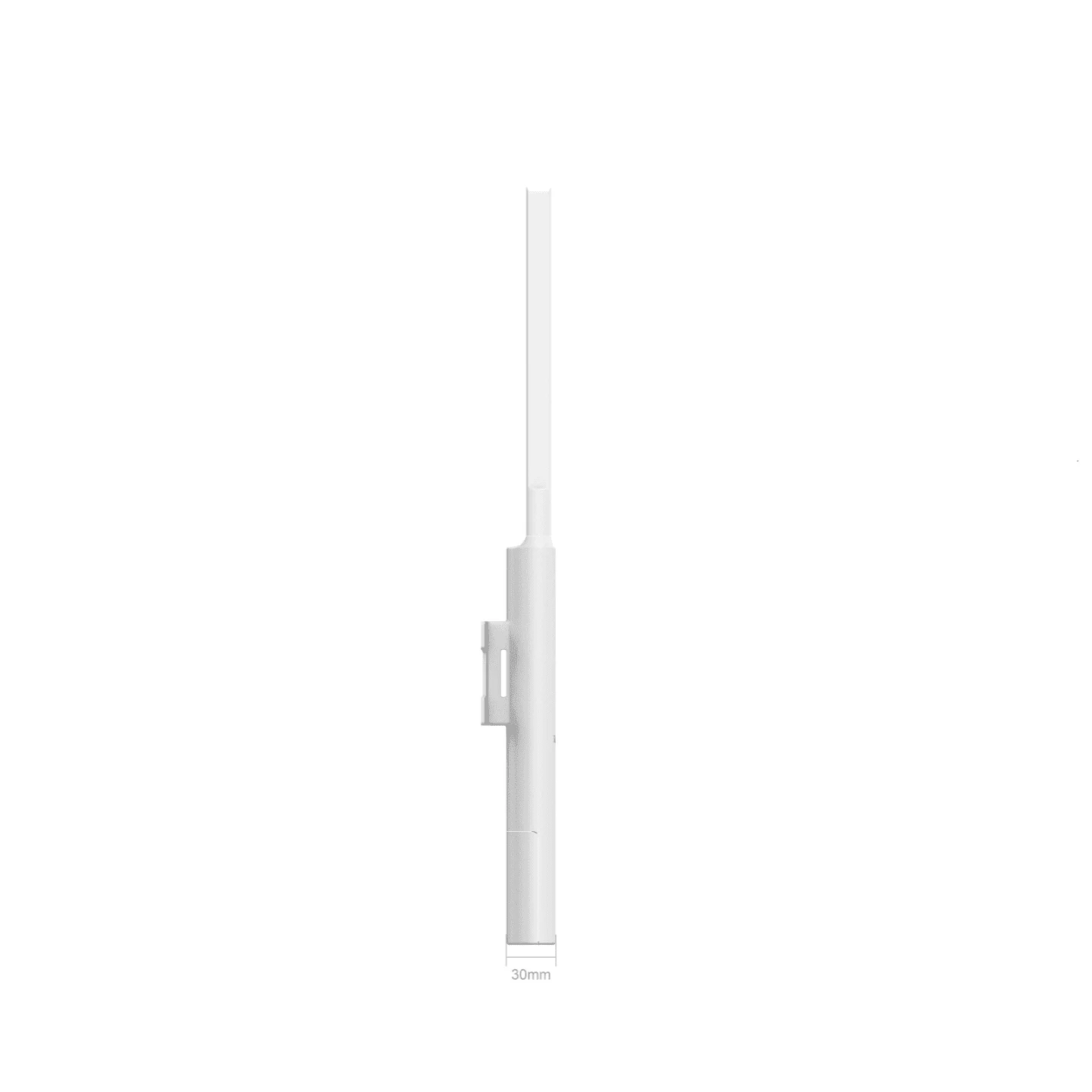

Dimensions (W x D x H)
Dimensions
(excluding
mounting kits)
220 mm × 50 mm × 35.7 mm (8.66 in. x 1.97 in. x 1.41
in.)
antenna size: 185mm (7.28 in.)
Weight excluding
mounting kits ≤ 0.4 kg (0.88 lbs.)
Service Ports
Number of
10/100/1000BA
SE-T Ports
1
(supports 802.3af PoE)
Number of
10/100/1000/25
00BASE-T Ports
0
Number of 1
Gbps Optical
Ports (SFP)
0
Number of 10
Gbps Optical
Ports (SFP+)
0
Power Supply
DC(Local
Power) No
DC Port
Dimensions No
802.3af Yes
802.3at Yes
802.3bt N/A
48 V passive
PoE N/A
