Description
Product Description

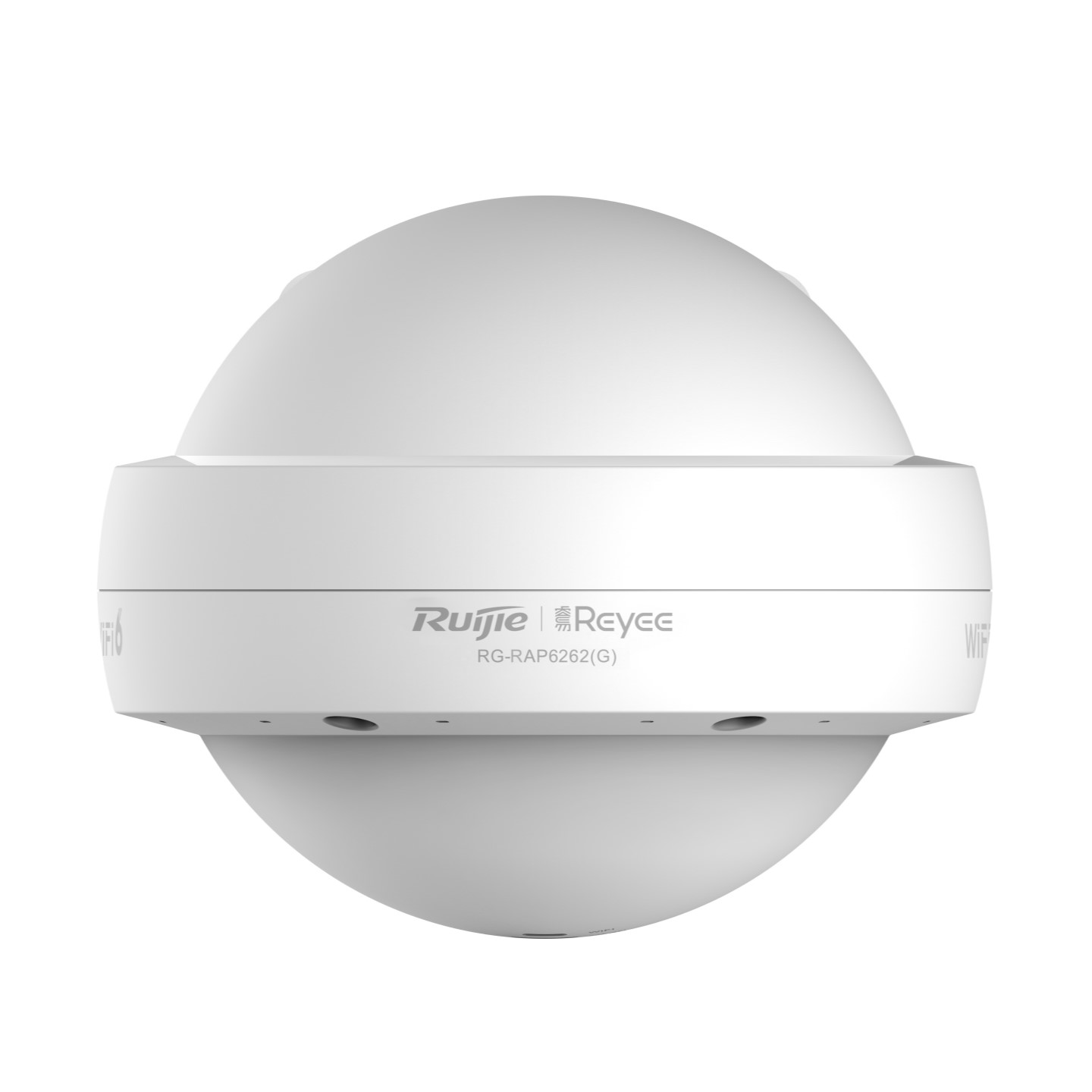

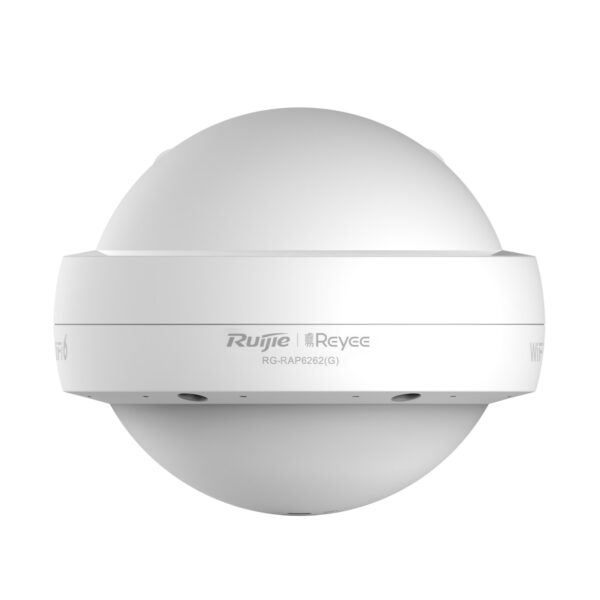

The Ruijie Reyee RG-RAP6262(G) is a high-performance, outdoor, omni-directional Wi-Fi 6 access point (AP) designed for robust and secure wireless connectivity. It’s known for its “UFO” design, Wi-Fi 6 technology, long-range coverage, and IP68 rating for protection against harsh environments. The Ruijie Reyee RG-RAP6262(G) is a high-performance, outdoor, omni-directional Wi-Fi 6 access point (AP) designed for robust and secure wireless connectivity. It’s known for its “UFO” design, Wi-Fi 6 technology, long-range coverage, and IP68 rating for protection against harsh environments.
Product Description
Coping with Harsh Environments: Completely sealing, waterproof, dustproof, moisture-proof, and flame-retardant design, and wind erosion protection.
Omni-directional Coverage with a Wide Range: Four built-in high-gain antennas, and full coverage with a radius of 100 meters at 2.4 GHz and 300 meters at 5 GHz*.
IP68 Rating: Offers complete sealing and protection against water, dust, moisture, and flame-retardant, making it suitable for outdoor deployments.

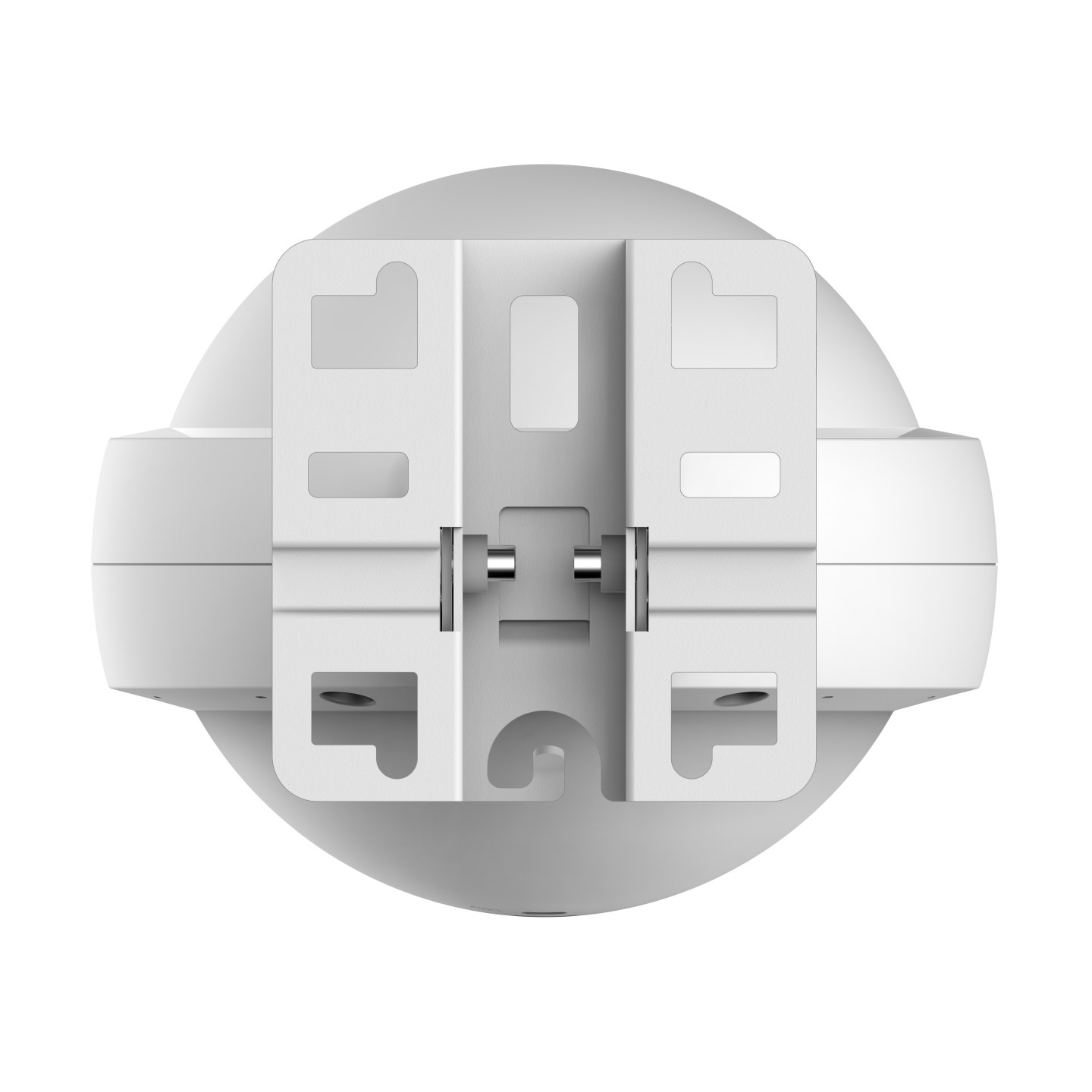

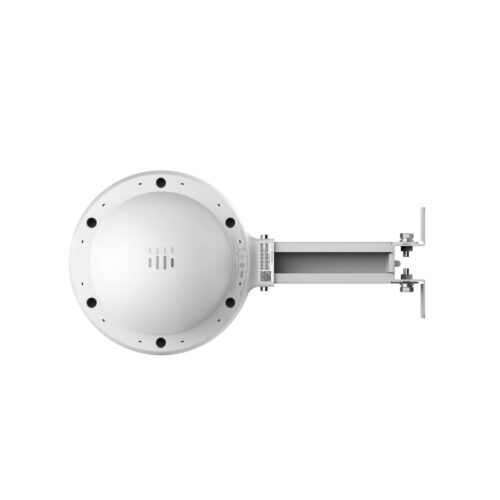

Easy Installation: Rack-separated mounting design, easy installation, and plastic cable ties replaced by the iron hoop.
Dual-Band Operation: Operates on both 2.4 GHz and 5 GHz bands, enabling flexible connectivity and reduced interference.
Advanced Security: Includes security protocols like WPA2-PSK, WPA3-SAE, and 802.1x authentication, as well as AES, TKIP, and WEP encryption.
Omni-directional Coverage: Provides wide-ranging coverage with a radius of 100 meters at 2.4 GHz and 300 meters at 5 GHz, depending on the environment.
No cabling, and ease of use: easily Adding Extra Outdoor Wi-Fi with Reyee Mesh.
Cloud, Make Your Business Easy
- Remote monitoring
- Remote Wi-Fi management
- Cloud portal authentication
- Wireless intelligent optimization
Specifications
Model RG-RAP6262(G)
Hardware Specifications
Wi-Fi Protocols
5 GHz
Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
Wi-Fi 6: IEEE 802.11ax
2.4 GHz Wi-Fi 4:IEEE 802.11b/g/n
Wi-Fi 6:IEEE 802.11ax
Operating Frequency Bands
(country-specific restrictions
apply)
5 GHz
5.150 GHz to 5.350 GHz,
5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz
2.4 GHz 2.400 GHz to 2.4835 GHz
Spatial Streams
5 GHz 2 spatial streams, 2×2 MIMO
2.4 GHz 2 spatial streams, 2×2 MIMO
Antenna
Omnidirectional Yes
5 GHz Antenna
Gain 3.0dBi
2.4 GHz
Antenna Gain 3.0dBi
Channel Width
5 GHz Auto/20/40/80 MHz
2.4 GHz Auto/20/40 MHz
Data Rate
Max
Throughput 1774Mbps
5 GHz 1201Mbps
2.4 GHz 573Mbps
Max. Transmit Power
5 GHz ≤316mW(25dBm)
2.4 GHz ≤400mW(26dBm)
Wi-Fi Coverage
Optimal
Coverage N/A
Max. Wi-Fi
Coverage
Range (6 GHz)
N/A
Max. Wi-Fi
Coverage
Range (5 GHz)
300m
Max. Wi-Fi
Coverage
Range (2.4
GHz)
100m
Specifications
Model RG-RAP6262(G)
Hardware Specifications
Modulation Modulation
OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps,
16QAM@24 Mbps, 64QAM@48/54 Mbps
DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and
CCK@5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM,
256QAM and1024QAM
OFDMA
Receiver Sensitivity Receiver
Sensitivity
11b: -91dBm(1Mbps)，-88dBm(5.5Mbps), –
85dBm(11Mbps)
11a/g: -89dBm(6Mbps)，-80dBm(24Mbps), –
76dBm(36Mbps)，-71dBm(54Mbps)
11n: -83dBm(MCS0)，-65dBm(MCS7), -83dBm(MCS8)
，-65dBm(MCS15)
11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9)
11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9)
11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9)
11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11)
11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11)
11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11)
Dimensions (W x D x H)
Dimensions
(excluding
mounting kits)
200 mm × 220 mm × 166 mm
(7.87 in. x 8.66 in. x 6.54 in.)
Weight excluding
mounting kits ≤ 1.2 kg (2.65 lbs.)
Service Ports
Number of
10/100/1000BAS
E-T Ports
2
(supports 802.3at PoE)
Number of
10/100/1000/250
0BASE-T Ports
0
Number of 1
Gbps Optical
Ports (SFP)
0
Power Supply
DC(Local Power) Yes(12V/1.5A)
DC Port
Dimensions
Outer Diameter: 5.5 mm
Inner Diameter: 2.1 mm
Length: 10 mm
802.3af No
802.3at Yes
802.3bt N/A
48 V passive PoE N/A
Specifications
Model RG-RAP6262(G)
Hardware Specifications
PoE Out Max. PoE
Wattage by PSE No
Power Consumption Power
Consumption < 18W
Power Adapter Power Adapter No
Buttons Button 1 × Factory reset
LEDs LEDs
1 × System LED indicator
1 × Wi-Fi LED indicator
1 × LAN1 LED indicator
1 × LAN2 LED indicator
Environment
Operating
Temperature –30°C to +65°C (–22°F to +149°F)
Storage
Temperature –40°C to +85°C (–40°F to +185°F)
Operating
Humidity 0% to 100% (non-condensing)
Storage
Humidity 0% to 100% (non-condensing)
Mounting
Ceiling-mount No
Wall-mount Yes

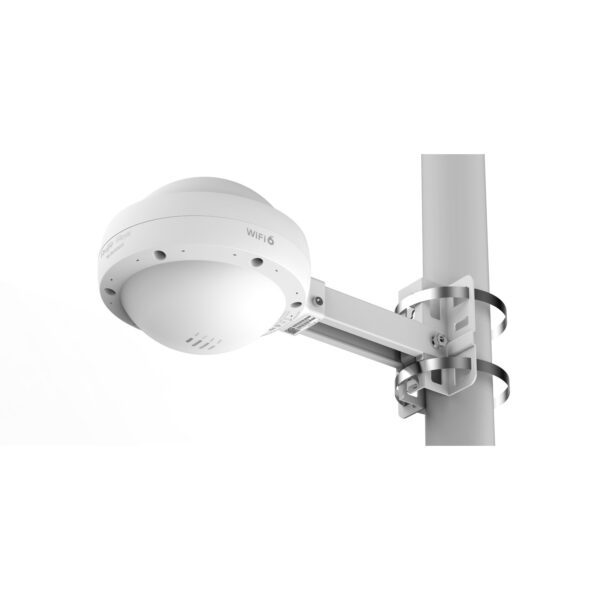

Pole-mount Yes
Compliance Standards
Health EN IEC 62311:2020
Spectrum
EN 300 328 V2.2.2
EN 301 893 V2.1.1
EN 300 440 V2.2.1
Weatherproof
IP Rating IP68
Lightning
Protection/
Surge
±4 kV
Software Specifications
Operating Mode (AP Mode and
Router Mode)
Router Mode Yes
AP Mode Yes
WLAN
Recommended
Number of
Clients
11ax STA:
16(2.4G)+84(5G)=100
11ac STA:
16(2.4G)+64(5G)=80
Specifications
Model RG-RAP6262(G)
Software Specifications
WLAN
Max. Number
of SSIDs 8
Radio-based
STA Limit Yes
Layer 2 Client
Isolation Yes
OFDMA
Subcarrier Yes
OFDMA Yes
Target Wake
Time (TWT) No
Wi-Fi
Multimedia
(WMM)
Yes
802.1Q VLAN Yes
Multi-Link
Operation
(MLO)
No
4K-QAM No
Same SSID for
Different VLANs Yes
Roaming
802.11k/v Yes
802.11r Yes
Layer 2
Roaming Yes
Layer 3
Roaming Yes
AI Roaming Yes
Security
PSK
Authentication Yes
Static Blocklist
and Allowlist Yes
WPA (TKIP),
WPA2 (AES),
and WPA-PSK
Yes
Specifications
Model RG-RAP6262(G)
Software Specifications
Security
OWE (Enhanced
Open)
WPA3-SAE
WPA2-
PSK/WPA3-SAE
Yes
802.1X Yes
ARP Check No
IP Source
Guard No
LLDP No
Static ARP
Binding Yes
Proxy ARP No
Ping Yes
Traceroute Yes
Routing
NAT Yes
Static IP
Address Yes
DHCP Server Yes
PPPoE Client
PPPoE Dial-up
Yes
AP Mesh
Mesh
Management Yes
Reyee Mesh Yes
Standalone Portal
Captive Portal Yes
Bandwidth
Limit Yes
Data Quota No
Specifications
Model RG-RAP6262(G)
Software Specifications
Management and Maintenance
Default
Access/Password Yes
No. of APs on a
Self-Organizing
Network
300
Unified
Networking for
All Network
Equipment
Yes
Local or
Remote
Management
via Ruijie Reyee
App
Yes
Local
Management
via the Web
Interface
Yes
Remote
Management
via Ruijie Cloud
Yes
SNMP Yes
Platform Management
Features
Optimization of
Channel,
Transmit
Power, and
Management
Frame Power
Settings. Both
Pre- and ProOptimization
Settings are
Displayed.
Yes
Unified
Configuration
via Ruijie Cloud
Yes
Unified
Monitoring via
Ruijie Cloud
Yes
Others
Flash Flash 16MB
Memory Memory 256MB
Color of AP Enclosure Color of AP
Enclosure Warm White
