High-Speed Dual-band Wi-Fi
The device supports 2.4GHz and 5GHz dual-band communication, they can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.
RG-RAP2260(E) provide access rate of 800Mbps at 2.4GHz, 2402Mbps at 5GHz ,in total 3202Mbps per AP.

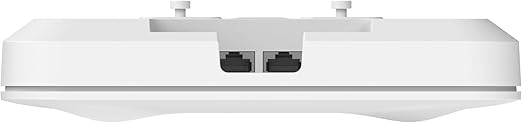

Dual LAN Ports Design
The device adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices, etc.
Support Routing and AP Mode
The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.
Support Layer 3 roaming
The device supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.
Stronger and More Stable Signals
An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity.
The device uses FBAR to filter out most of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.
Robust Casing
With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.
Simple Installation
It supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.
Industrial Design

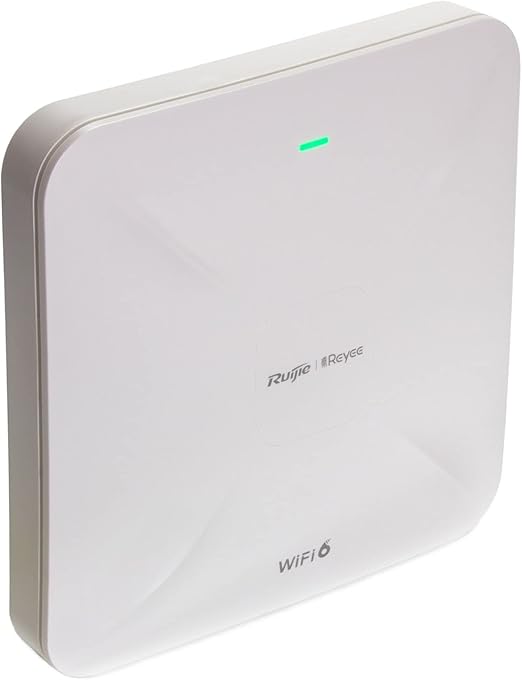

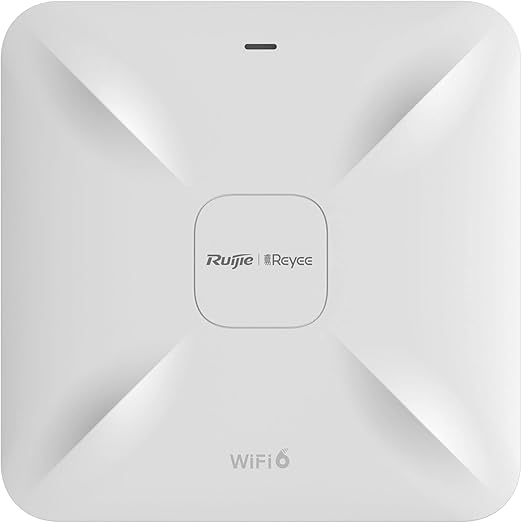

The industrial product design, iconic edges and breathing light makes the product more recognizable.
|
Model |
RG-RAP2260(G) |
RG-RAP2260(E) |
|
Hardware Specifications |
||
| Radio | Dual-stream dual-band | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n/ax ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific) |
802.11b/g/n ：2.4G ~ 2.4835GHz
802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific) |
| Antenna | Internal antennas(2.4G: 3dBi，5G: 3dBi) | Internal antennas(2.4G: 3dBi，5G: 3dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO | 2.4G 4x4MIMO 5G 4x4MIMO |
| Max Throughput | Up to 574Mbps at 2.4G
Up to 1201Mbps at 5G 1.775Gbp per AP |
Up to 800Mbps at 2.4G
Up to 2402Mbps at 5G 3.202Gbp per AP |
| Modulation | OFDM：
BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps
DSSS： DBPSK@1Mbps，DQPSK@2Mbps， and CCK@5.5/11Mbps
MIMO-OFDM： BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAM
OFDMA |
OFDM：
BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps
DSSS： DBPSK@1Mbps，DQPSK@2Mbps， and CCK@5.5/11Mbps
MIMO-OFDM： BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAM
OFDMA |
| Receive Sensitivity | 11b：
-96dBm(1Mbps)， -93dBm(5Mbps)， -89dBm(11Mbps)
11a/g： -91dBm(6Mbps)， -85dBm(24Mbps)， -80dBm(36Mbps)， -74dBm(54Mbps)
11n： -90dBm(MCS0)， -70dBm(MCS7)， -89dBm(MCS8)， -68dBm(MCS15)
11ac： 20MHz：-88dBm(MCS0), -63dBm(MCS9) 40MHz：-85dBm(MCS0), -60dBm(MCS9) 80MHz：-85dBm(MCS0), -60dBm(MCS9)
Wi-Fi 6： 80MHz：-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11) |
11b：
-96dBm(1Mbps)， -93dBm(5Mbps)， -89dBm(11Mbps)
11a/g： -91dBm(6Mbps)， -85dBm(24Mbps)， -80dBm(36Mbps)， -74dBm(54Mbps)
11n： -90dBm(MCS0)， -70dBm(MCS7)， -89dBm(MCS8)， -68dBm(MCS15)
11ac： 20MHz：-88dBm(MCS0), -63dBm(MCS9) 40MHz：-85dBm(MCS0), -60dBm(MCS9) 80MHz：-85dBm(MCS0), -60dBm(MCS9)
Wi-Fi 6： 80MHz：-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11) |
|
Maximum output power of the transmitter |
2.4GHz(2.4~2.4835GHz)：23dBm
5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm (country-specific，comply with local laws) |
2.4GHz(2.4~2.4835GHz)：23dBm
5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm (country-specific，comply with local laws) |
|
Adjustable Power |
1dBm | 1dBm |
|
Dimensions |
194mm×194mm×35mm (excluding mounting kits) | 220mm×220mm×35mm (excluding mounting kits) |
|
Weight |
0.56kg (excluding mounting kits) | 1.05kg (excluding mounting kits) |
| Service Ports | 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE | 1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE; 1 10/100/1000M Base-T ,Ethernet ports |
| Management Port | NA | NA |
| LED Indicator | Single indicator (green light) | Single indicator (green light) |
| Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) | |
| Power Consumption | ≤ 15.3W | ≤ 25.4W |
| Environment | Operating temperature: 0°C～40°C | Operating temperature: 0°C～40°C |
| Storage temperature: -40°C～70°C | Storage temperature: -40°C～70°C | |
| Operating humidity: 5％～95％
(non-condensing) |
Operating humidity: 5％～95％
(non-condensing) |
|
| Storage humidity: 5％～95％
(non-condensing) |
Storage humidity: 5％～95％
(non-condensing) |
|
| Installation | Ceiling/wall-mountable | Ceiling/wall-mountable |
| Safety Standard | GB4943, IEC 62368-1 | GB4943, IEC 62368-1 |
| EMC Standard | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 |
| Vibration Standard | IEC61373 | IEC61373 |
| Radio Standard | EN300 328, EN301 893 | EN300 328, EN301 893 |
| MTBF | >400000H | >400000H |
|
Software Features |
||
| Operating Mode | AP mode and routing mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 512 | Maximum number of clients: 512 |
| Recommended number of clients: 100 | Recommended number of clients: 120 | |
| Up to 8 SSIDs | Up to 8 SSIDs | |
| Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
|
| SSID-based and radio-based STA limit | SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | Support Layer 2 user isolation | |
| Roaming | Support Layer 2 and Layer 3 roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication | Support PSK authentication |
| Support static blacklist and whitelist | Support static blacklist and whitelist | |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
| Support Black List / White List：
Maximum 256 rules per SSID Maximum 1024 rules per AP |
Support Black List / White List：
Maximum 256 rules per SSID Maximum 1024 rules per AP |
|
| Routing | Support static IP address, DHCP, PPPoE Dial Up | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
| Platform management features | Automatic RF adjustment via the platform | Automatic RF adjustment via the platform |
| Unified configuration via the platform | Unified configuration via the platform | |
| Unified monitoring via the platform | Unified monitoring via the platform | |
