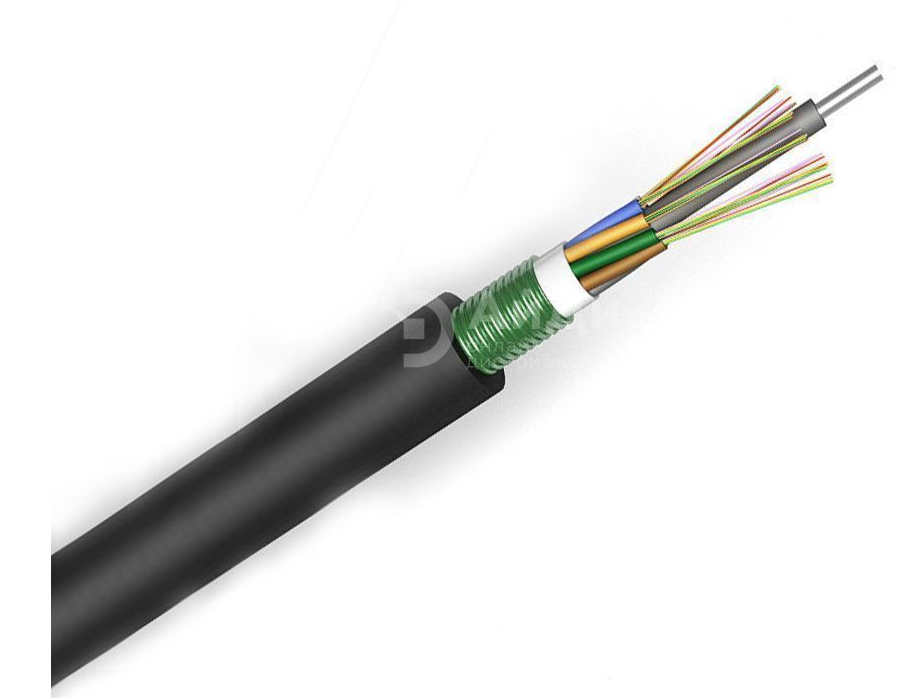

Siemon 24 Strand Singlemode Armored, LT, GF, OSP -10G,MDPE

Siemon 24 Strand Singlemode Armored, LT, GF, OSP -10G,MDPE

SKU: 9F8LE4-24B1.00
UShs 13,000
In Stock
Add to wishlist Compare
Other people want this. 1 people have this in their carts right now.
SKU: 9F8LE4-24B1.00 Category:
  • 24 Strand Singlemode Armored
  • LT, GF, OSP -10G
  • MDPE

Description

Description Siemon 9F8LE4-24B1.00

The 9F8LE4-12D2.50 Outdoor Profile Cable (OSP) is ideal for use in campus backbone applications between buildings, including overhead runs, buried runs and conduits. The cable is rated for outdoor conditions and the stresses that come with them during installation. XGLO and LightSystem fiber options are available to support high-speed 1Gbps and 10Gbps Ethernet, Gigabit ATM and Fibre Channel applications, depending on the configuration.
XGLO Cable Features
• 4 x 6 fiber construction.
• Rip cord runs the entire length of the cable.
• Tubes are filled with hydrophobic gel.
• Corrugated metal tape armor.
• Black medium-density polyethylene (MDPE) outer jacket, which is UV resistant.
• 16-144 fiber cables have an FRP center armor element, 2-12 fiber cables do not.
Conforms to
ISO/IEC 11801:Ed. 2.0 Suppl.:1:2008
ANSI/TIA/EIA-568-C.3, ANSI/TIA-598-C
Telcordia GR-409-CORE, ITU-T G.652 C/D

Specifications Siemon 9F8LE4-24B1.00

Manufacturer's article number 9F8LE4-24B1.00
Product Fiber optic cable
Manufacturer Siemon
Series XGLO
Shell MDPE
Length, m 1000
Fiber type OS2 9/125
Number of cable fibers 24
Cable diameter, mm 11.4
Package coil
Cable laying type Outside of buildings
Booking Armored
Minimum bending radius during installation, mm 228
Minimum bending radius during operation, mm 114
Operating temperature range, C -30...60
Approximate weight, kg/km 131
Maximum short-term tensile force (IEC 60794-1-2-E1), N 2700
Maximum tensile force during operation, N 810
Storage temperature range, C -40..70
Cable construction Loose tube
Color Black
