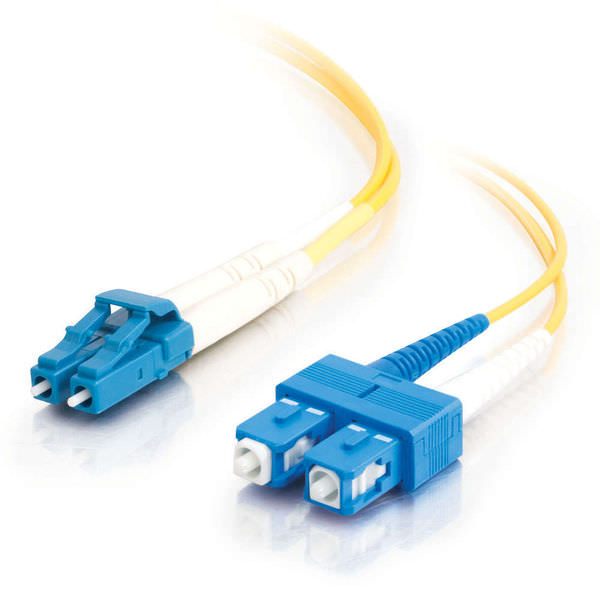

SIEMON FIBER JUMPER DUPLEX SM,LCSC, YELLOW 5M

Name: SIEMON FIBER JUMPER DUPLEX SM,LCSC, YELLOW 5M
SKU: FJ2-LCUSCUL-05H
Availability: InStock

SKU: FJ2-LCUSCUL-05H

UShs 189,000

In Stock

Add to wishlist Compare

Other people want this. 1 people have this in their carts right now.

SKU: FJ2-LCUSCUL-05H Categories: Fibre Jumper, Networking

FIBER JUMPER DUPLEX SM
LCSC, YELLOW 5M

Description
Specification

Description

XGLO fiber optic cable assemblies are ideal for next generation backbone or fiber-to-the-desk applications. XGLO cable assemblies feature premium fiber that meets IEEE 802.3 10 Gigabit Ethernet Standard as well as IEC-60793-2-10 and TIA-492AAAC specifi cations for laser bandwidth Differential Mode Delay (DMD) specifications. In addition, these assemblies offer a superior connector polish that exceeds all ANSI/TIA/EIA and ISO/IEC insertion loss and return loss requirements.

Features

Robust Performance Laser bandwidth optimized cable reduces impurities in the core of fiber, ensuring robust 10 Gigabit Ethernet transmission
Standard Lengths Jumpers available in 1, 2, 3, and 5 meter standard lengths
Easy Identification Connectors color coded per ANSI/TIA/EIA-568-B.3
Dust Caps Dust caps included to protect polished ferrule from dirt and damage
Polarity Connection SC duplexing clip allows for polarity correction
Durable Exceeds TIA/EIA and ISO/IEC requirements for aging, exposure to humidity, temperature extremes, impact, vibration, coupling strength, and cable resistance to stress and strain
Multimode and Single-mode 50/125m multimode and single-mode assemblies available
Pigtails Available in 1 meter lengths
Supports 10 Gigabit Ethernet

Product code:	242166
Main characteristics
Connector type:	LC-SC
Optical fiber type:	SM (OS1/OS2)
Execution:	duplex
Outer shell:	L.S.H.
Cable color:	yellow
Shell
Outer shell material:	LSZH (low smoke zero halogen compound)
Connectors
Connector polishing class 1:	UPC
Connector polishing class 2:	UPC
Dimensions and weight
Length:	5 m

Weight:	0.054 kg
Volume:	0.0008 m3
