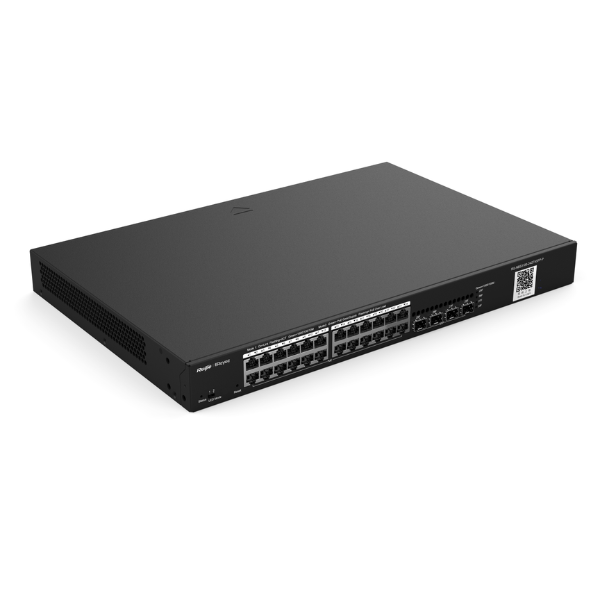

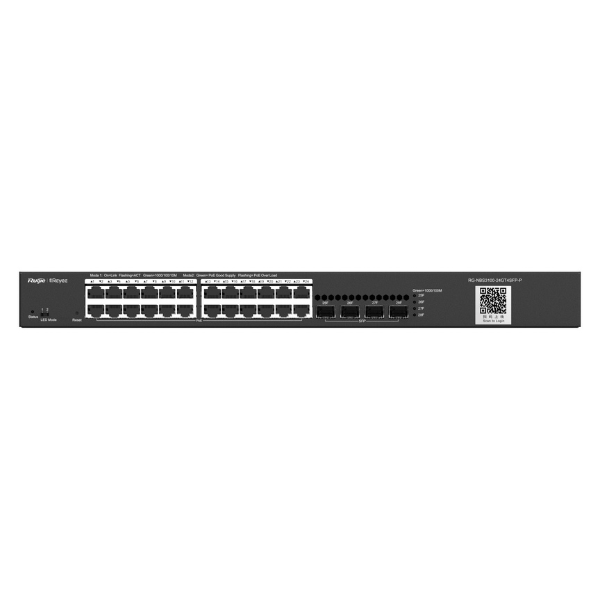

Ruijie RG-NBS3100-24GT4SFP-P 24-Port L2 Managed PoE+ Switch

SKU: RG-NBS3100-24GT4SFP-P
UGX 1,491,000
In Stock
Other people want this. 7 people have this in their carts right now.
SKU: RG-NBS3100-24GT4SFP-P Categories: ,
  • 24 Gigabit RJ45 PoE+ Ports
  • 4 SFP Uplink Slots
  • 370W PoE Power Budget
  • 56 Gbps Switching Capacity
  • 42 Mpps Forwarding Rate

Description

The Ruijie RG-NBS3100-24GT4SFP-P is a high-performance, enterprise-grade Layer 2 managed PoE+ switch designed to meet the networking needs of various industries, including enterprises, hospitality, education, and retail. This switch provides robust performance with a full range of Layer 2 switching features, ensuring efficient traffic management, high network stability, and enhanced security.

High-Performance Switching Capabilities

The switch offers 24 Gigabit RJ45 PoE+ ports and 4 SFP uplink slots, making it ideal for connecting a variety of devices such as IP cameras, VoIP phones, and wireless access points. With a powerful switching capacity of 56 Gbps and a forwarding rate of 42 Mpps, the RG-NBS3100-24GT4SFP-P ensures smooth data transmission across your network, minimizing bottlenecks and ensuring optimal performance even in data-intensive environments.

Advanced PoE+ Capabilities

One of the key highlights of this switch is its PoE+ capabilities, which deliver a total power budget of 370W, with up to 30W available per port. This makes it suitable for powering high-power devices like advanced IP cameras and wireless access points. The PoE+ functionality simplifies installation by reducing the need for separate power cables, thus cutting down on both costs and complexity.

Robust Security Features

The RG-NBS3100-24GT4SFP-P comes with a range of security features designed to protect your network from unauthorized access and other threats. It supports advanced security protocols such as 802.1X authentication, ACLs, and DHCP snooping. These features ensure that your network remains secure and that sensitive data is protected from potential breaches.

Flexible Management Options

Management of the switch is straightforward, with support for both local and cloud-based management. The Ruijie Cloud platform allows for remote management, making it possible to configure, monitor, and troubleshoot the switch from any location. This cloud management capability is particularly beneficial for multi-site deployments, where centralized management can significantly reduce the complexity and cost of network maintenance.

Energy-Efficient and Reliable

The switch is designed with energy efficiency in mind, supporting Energy-Efficient Ethernet (EEE) to reduce power consumption during periods of low activity. Additionally, it features 6KV surge protection, ensuring reliability and durability in various operating environments. The fanless design further enhances reliability by reducing the risk of mechanical failure and ensuring silent operation.

  • Model: RG-NBS3100-24GT4SFP-P
  • Ports: 24 x Gigabit RJ45 PoE+ Ports, 4 x SFP Uplinks
  • PoE Budget: 370W (up to 30W per port)
  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 42 Mpps
  • MAC Address Table: 8K
  • VLAN Support: 4K VLANs, including Voice VLAN
  • Link Aggregation: Up to 8 groups, 8 ports per group
  • Jumbo Frame: 9KB
  • Security Features: 802.1X, DHCP Snooping, ACL, IP Source Guard
  • Power Supply: Built-in power supply
  • Surge Protection: 6KV on all ports
  • Dimensions: 440 x 260 x 44 mm (W x D x H)
  • Weight: 3.5 kg (with package)
  • Operating Temperature: 0°C to 45°C
  • Management: Local CLI, Web, Ruijie Cloud, SNMP
  • Warranty: 1 Year
