| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interface | 1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE) |
| Botón | Reset |
| Fuente de alimentación | 48V Passive PoE (+4,5pins; -7,8pins); 802.3af PoE |
| Consumo de Poder | 4.11 W |
| Dimensiones (An x Pr x Al) | 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) |
| Tipo de Antena | 2× 3 dBi External Omni waterproof |
| Recinto resistente a la intemperie | IP65 |
| Montaje | Pole / Wall Mounting (Kits included) |
| CARACTERÍSTICAS INALÁMBRICAS | |
|---|---|
| Concurrent Clients | 100+** |
| Estándares inalámbricos | IEEE 802.11n/g/b |
| Frecuencia | 2.4 GHz |
| Tasa de señal | • 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic) |
| Transmit Power | • CE: ≤20 dBm (EIRP) • FCC: ≤22 dBm |
| Funciones inalámbricas | • Multiple SSIDs（Up to 8 SSIDs） • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control （Adjust Transmit Power on dBm） • Seamless Roaming(802.11r) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Seguridad inalámbrica | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| ADMINISTRACIÓN | |
|---|---|
| Aplicación Omada | Yes |
| Gestión centralizada | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Acceso a la nube | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Alertas de correo electrónico | Yes |
| Control de LED ENCENDIDO / APAGADO | Yes |
| Gestión de control de acceso MAC | Yes |
| SNMP | v1, v2c |
| Registro del sistema Local / Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Gestión basada en web | HTTP/HTTPS |
| Gestión L3 | Yes |
| Gestión de múltiples sitios | Yes |
| VLAN de administración | Yes |
| OTROS | |
|---|---|
| Certificación | CE, FCC, RoHS |

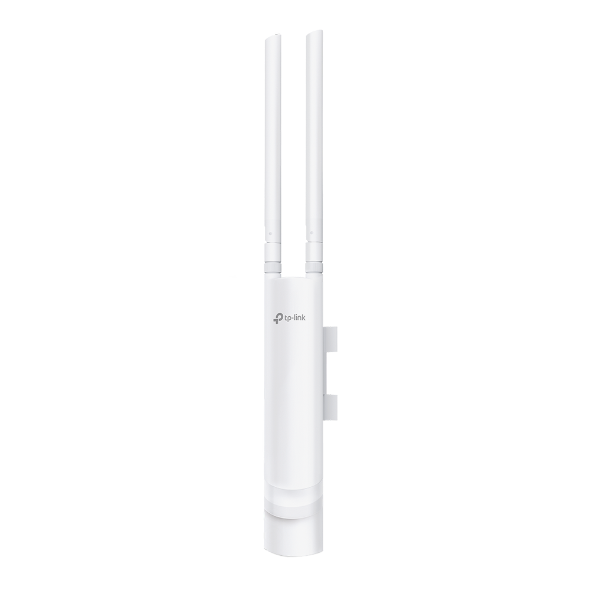

| contenidos del paquete | • 300Mbps Wireless N Outdoor Access Point, EAP113-Outdoor • Mounting Kits • Waterproof Rubber Insert • Waterproof Antennas • Installation Guide |
| Requisitos del sistema | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Ambiente | • Operating Temperature: -30–65 ℃ (-22–149 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
